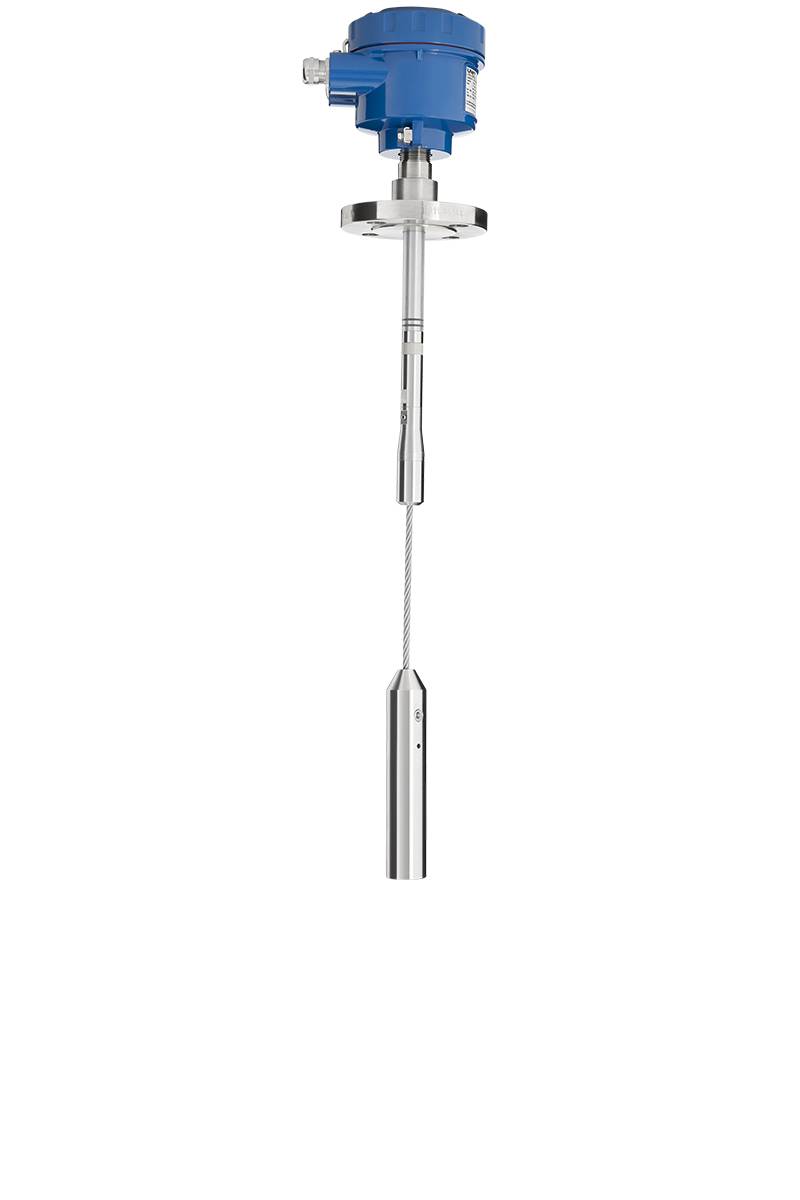

Capacitive sensor NivoCapa® NC8100 (Rope Version)
Sold By :
| Housing | Aluminum powder coated, IP68/NEMA 4 |
| Certificates | ATEX, FM/CSA, TR-CU, Inmetro, WHG, Lloyds |
| Shaft length | Rod version max. 5000mm, cable version max. 25.000mm |
| Active Probe Diameter | Rod version 19mm, cable version 6mm |
| Vertical Cable Version | max. 18.5KN |
| Horizontal Rod Version | max. 30 Nm |
| Process Temperature Range | -40°C to +200°C |
| Pressure Range | -1bar to +35bar |
| Sensitivity | DK-value ≥1,5 |
| Process Connection | ≥ NPT ¾", ≥ R ¾", ≥ G ¾", different flanges |
| Process Connection Material | 1.4404 (316L) |
| Probe Material | 1.4404 (316L), isolation PEEK, coating PFA, wetted seals FKM or FFKM |
| Supply Voltage | 12..24V DC, 2-wire current loop |
| Measurement Signal | Current loop 4 - 20 mA or 20 - 4 mA according to NAMUR NE 43 |
| Measurement range | 1.66 .. 3,300 pF |
- Wide range of applications in liquids and solids.
- Measurement of low DK values (from 1.5).
- Self diagnostics and integrated Local User Interface.
- Suitable for use in applications with high pressure - up to 35bar and process temperatures up to 200°C.
- Electronics housing made of die-cast aluminium, protection class IP 68/NEMA 4.
- Approvals for hazardous locations (gas and dust-Ex).
- High chemical resistance on probes.
