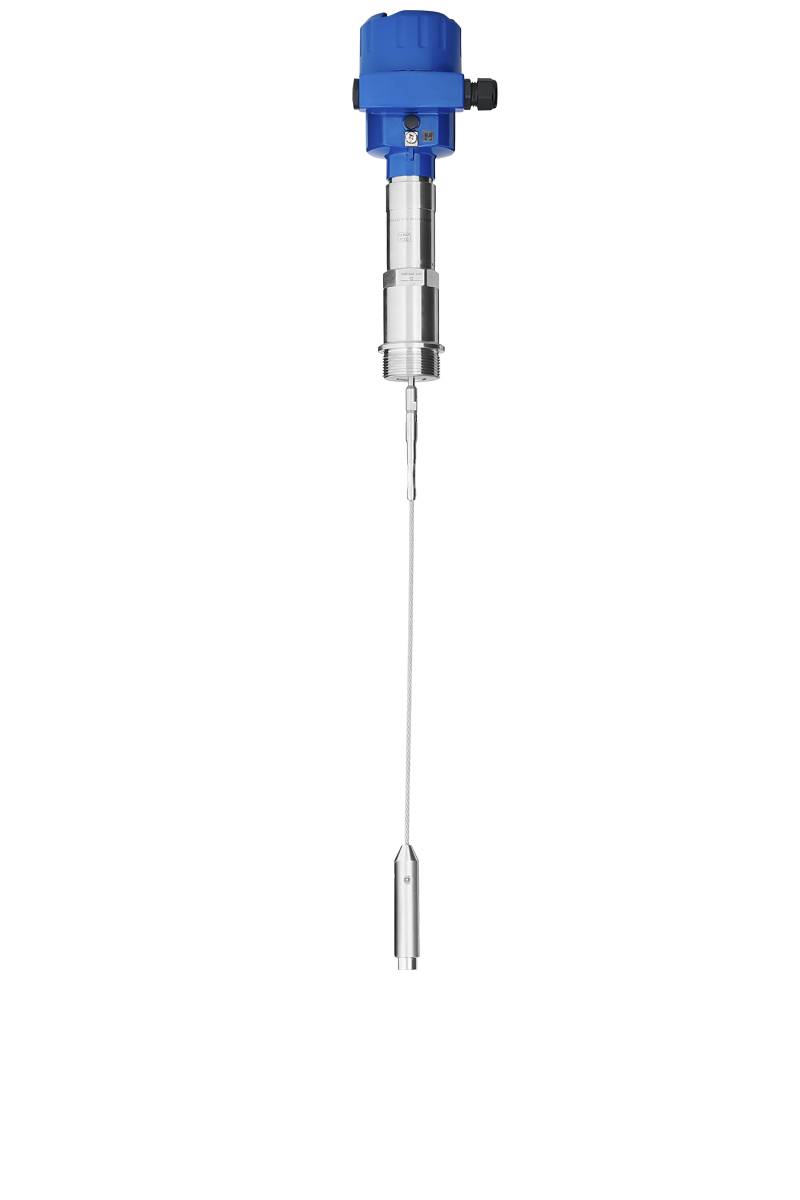

Guided Radar NivoGuide® NG8200 for level measurement in liquids

Sold By :


HousingStainless steel 1.4404 (316L), Aluminum, Type 6P/ IP66/ IP68
CertificatesCE, ATEX, IEC-Ex, FM
Process Temperature Range-20°C to +250°C
Pressure Range-1 .. +100bar max.
Supply Voltage9.6 … 35 V DC, 2-wire loop
Measuring RangeRope 60m
Material ProbeSS 316
Material SealingFFKM
Second line of defense* (optional)Borosilicate glass GPC 540 with 316L
Material IsolationPeek
Signal Output4 .. 20mA, 2-Wire
SensitivityDK ≥1,6
Process Connection≥ NPT ¾", ≥ G ¾", different flanges
ProgrammingVia display and programming buttons or via HART interface and FDT software.

• Rope version.
• Works in applications with vapour, buildup, foam generation and condensation.
• Easy setting and diagnosis with control module and display.
• Process temperature up to 250°C.
• Process pressure up to 100bar.
• A variety of approvals available.
• High chemical resistance of the probe.
