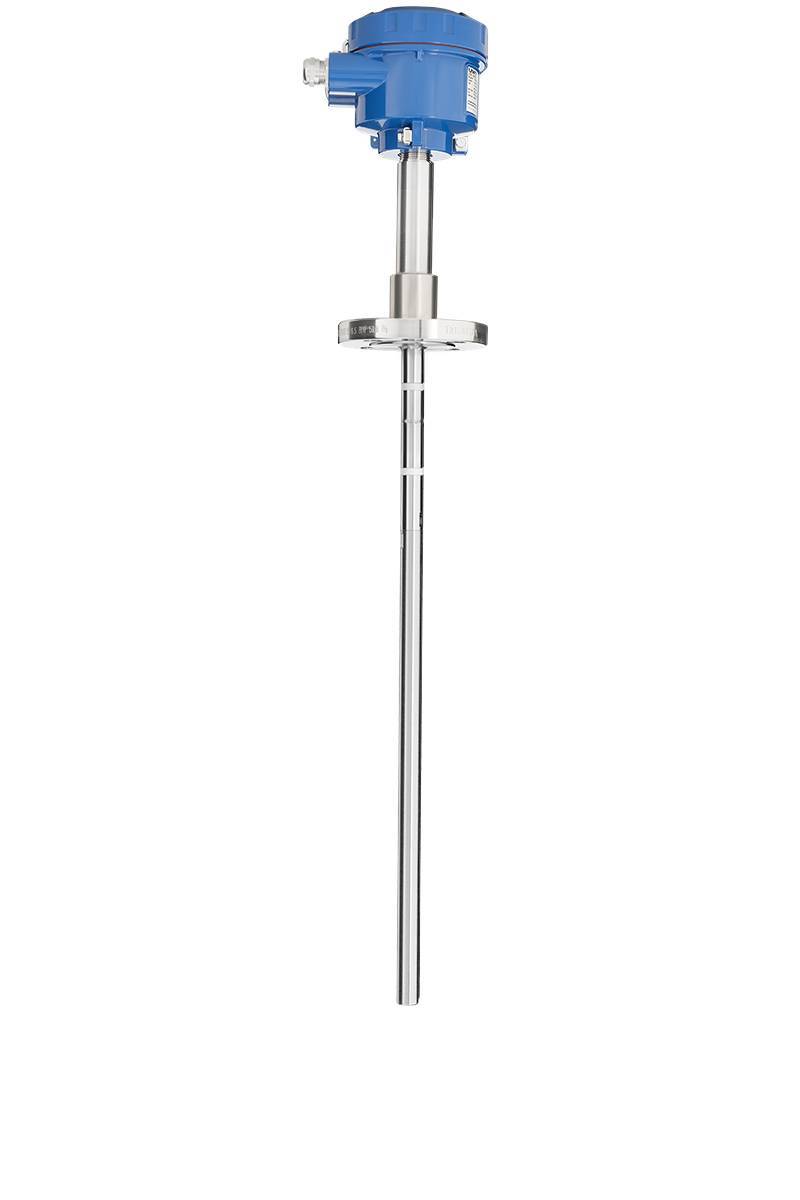

Capacitive sensor RFnivo® RF8200 for point level measurement

Sold By :

rjc.co.th



HousingAluminum powder coated, IP68/NEMA 4
CertificatesATEX, FM/CSA, TR-CU, Inmetro, WHG, Lloyds
Shaft lengthRod version max. 1000mm
Active Probe DiameterRod version 19mm
Vertical Cable Versionmax. 18.5KN
Process Temperature Range-40°C to +400°C
Pressure Range-1bar to +35bar
SensitivityDK-value ≥1,5
Process Connection≥ NPT ¾", ≥ R ¾", ≥ G ¾", different flanges
Process Connection Material1.4404 (316L)
Probe Material1.4404 (316L), isolation Ceramic
Supply Voltage12..250V AC/DC Relay SPDT/Solid State, 12..30V DC Profibus PA/Solid State
Switchable Signal OutputFSH / FSL integrated
Signal DelayIntegrated adjustable time delay of the signal output
  • Wide range of applications in liquids.
  • Suitable for use in applications with high pressure - up to 35bar and process temperatures up to 400°C.
  • Measurement of low DK values (from 1.5).
  • Active Shield Technology against material build-up.
  • Electronics housing made of die-cast aluminum, protection class IP 68/NEMA 4.
  • Approvals for hazardous locations (gas and dust-Ex).
  • High chemical resistance on probes.
  • No maintenance
