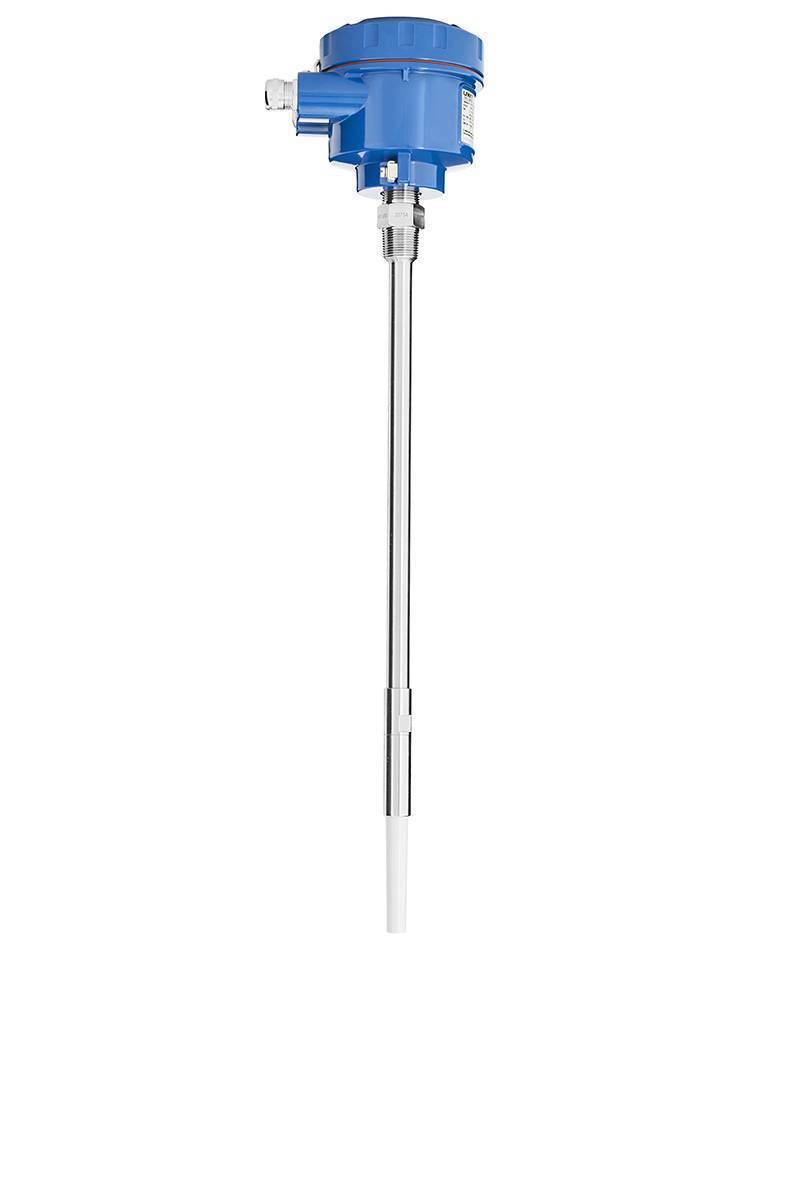

Capacitive Sensor Capanivo® CN 8100 for point level measurement (Cable Version)
Sold By :
| Housing | Powder coated aluminum IP68 |
| Certificates | ATEX, FM/CSA, TR-CU, Inmetro, WHG, Lloyds, SIL 2 |
| Process Temperature Range | -40°C to +125°C |
| Pressure Range | -1bar to +10bar |
| Sensitivity | DK value ≥1.5 adjustable |
| Supply Voltage | 12..250V AC/DC Relay SPDT/Solid State, 12..30V DC Profibus PA/Solid State |
| Process Connection | ≥ NPT ¾", ≥ R ¾", ≥ G ¾", different flanges, triclamp |
| Process Connection Material | Stainless steel 316L |
| Probe Material | Plastic PPS (reinforced glass fibre), FDA listed, PVDF, cable version: FEP jacketed cable |
| Signal Output | Relay switch SPDT/solid state switch, Profibus PA/solid state switch |
- Reliable and easy to operate measurement principle.
- High chemical resistance on probes.
- High sensitivity from a DK ≥1.5.
- Level detection independent of tank wall/ pipe
- Maintenance free, corrosion resistant, suitable for a wide range of applications.
- Certification for use in gas- and dust-Ex areas.
- Digital electronics with integrated local user interface
