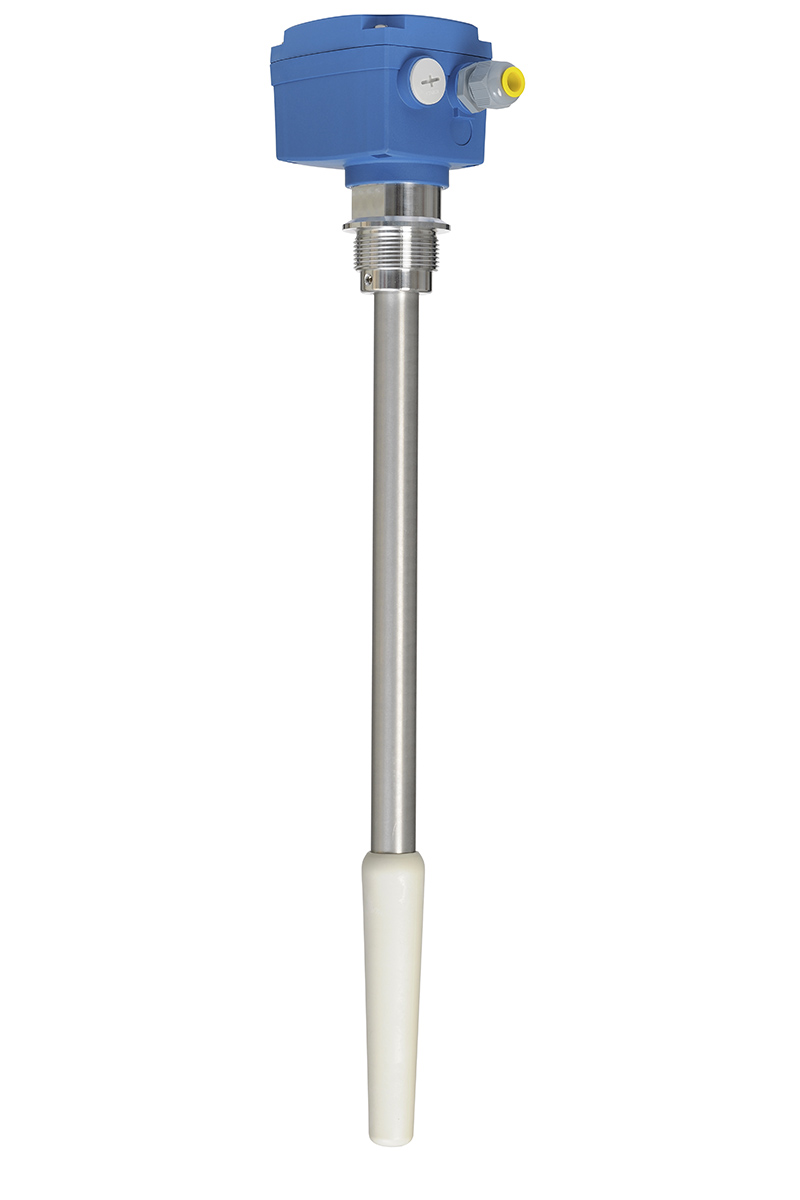

Capacitive Sensor Capanivo® CN 4030 for level measurement

Sold By :

rjc.co.th



HousingPlastic PA6 or aluminium, IP66
CertificatesATEX, IEC-Ex, TR-CU
Process Temperature Range-40°C to +110°C
Pressure Range-1bar to +16bar
SensitivityDK-value >1,6 - adjustable in 4 settings
Supply VoltagePNP 20..40V DC, relay DPDT 21..230V AC 21..45V DC
Process ConnectionG 1.5"
Process Connection MaterialAluminium or stainless steel 1.4305 (303)
Probe MaterialPlastic PPS (reinforced glass fiber), FDA listed, Food grade material
Switchable Signal OutputFSH / FSL is integrated as standard with all electronics
Signal DelayAdjustable time delay of the signal output is integrated with all electronics


LupeInstallation examples  CN4030 tube extension
  • Price competitive level control device.
  • Simple installation and set up, no calibration required.
  • Flexible height adjustment available.
  • Maintenance free, corrosion resistant, suitable for a wide range of applications.
  • Reliable and easy to operate measurement principle.
  • Plastic or die-cast aluminium electronics housing, protection class IP 66.
  • Certification for use in dust-Ex areas.
  • High sensitivity from a DK range of 1.6.
