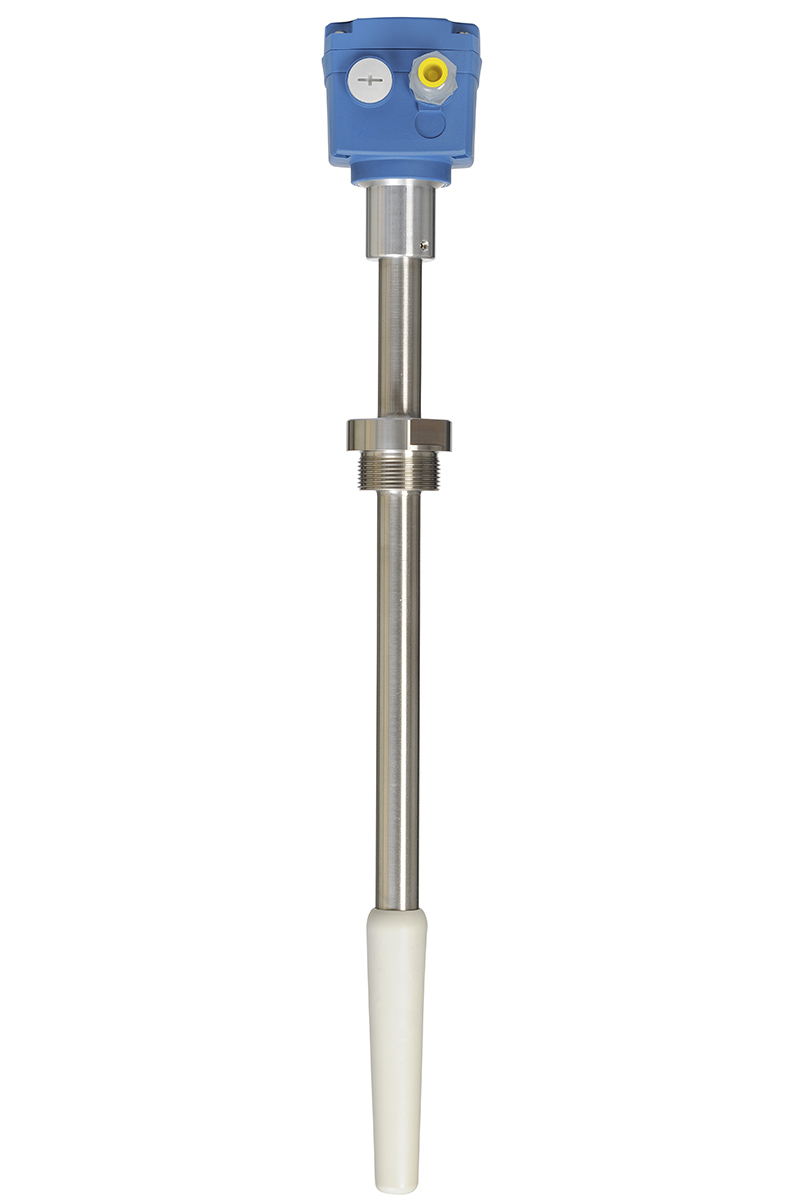

Capacitive Sensor Capanivo® CN 4020 Temp for level measurement
Sold By :
| Housing | Plastic PA6 or Aluminium, IP66 |
| Certificates | ATEX, IEC-Ex, TR-CU |
| Process Temperature Range | -40°C bis +180°C |
| Pressure Range | -1bar to +16bar |
| Sensitivity | DK-Value >1,6 - adjustable in 4 settings |
| Supply Voltage | PNP 20..40V DC, Relais DPDT 21..230V AC 21..45V DC |
| Process Connection | G 1,5" |
| Process Connection Material | Stainless steel 1.4305 (SS 303) |
| Probe Material | Plastic PPS (reinforced glass fibre), FDA listed, Food grade material |
| Switchable Signal Output | FSH/FSL is integrated as standard with all electronics |
| Signal Delay | Adjustable time delay of the signal output is integrated with all electronics |
- Price competitive level control device.
- Simple installation and set up, no calibration required.
- Maintenance free, corrosion resistant, suitable for a wide range of applications.
- Reliable and easy to operate measurement principle.
- Plastic or die-cast aluminium electronics housing, protection class IP 66.
- Certification for use in dust-Ex Areas.
- High sensitivity from a DK range of 1.6.
