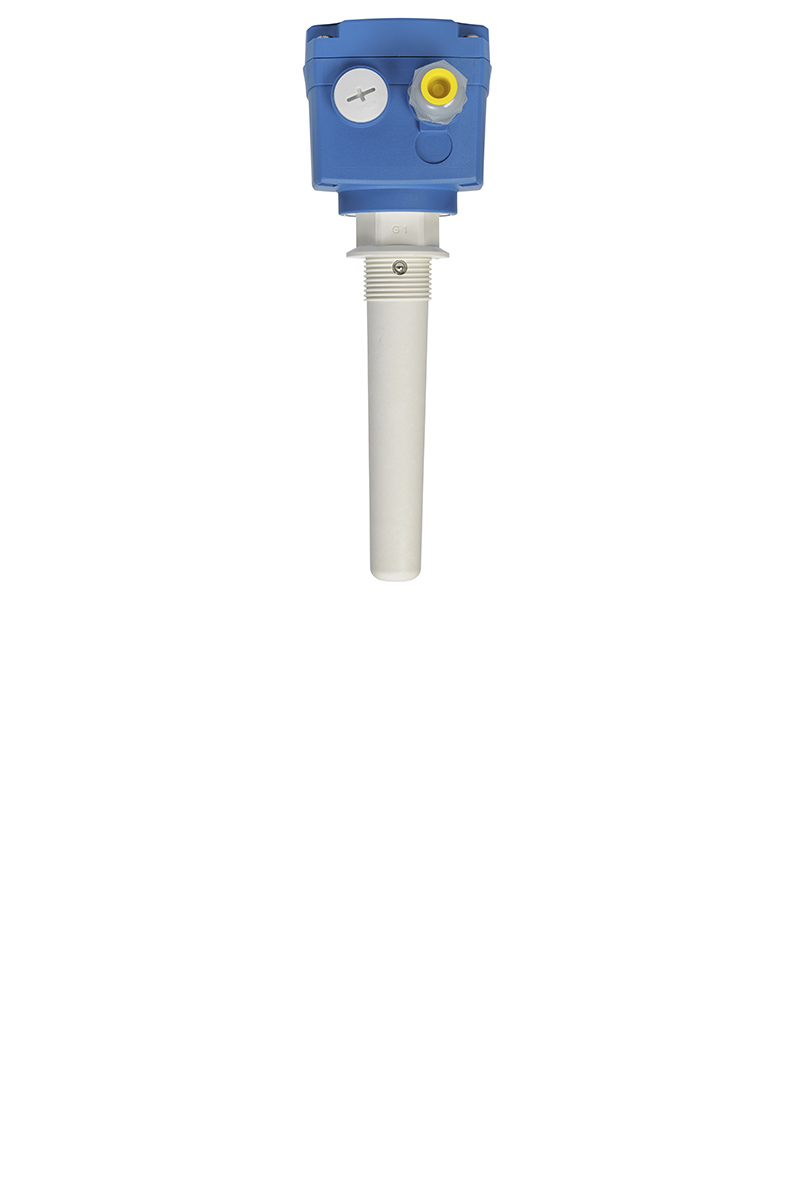

Capacitive Sensor Capanivo® CN 4020 for level measurement
Sold By :
| Housing | Plastic PA6 or Aluminium, IP66 |
| Certificates | ATEX, IEC-Ex, TR-CU |
| Process Temperature Range | -40°C to +120°C |
| Pressure Range | -1bar to +25bar |
| Sensitivity | DK value >1,6 - adjustable in 4 increments |
| Supply Voltage | Relay SPDT 21..27V DC, PNP 20..40V DC, Relay DPDT 21..230V AC 21..45V DC |
| Process Connection | G 1", G 1,5", NPT 1 ¼", NPT 1 ½" |
| Process Connection Material | Plastic PPS (reinforced glass fibre), FDA listed, food grade material |
| Probe Material | Plastic PPS (reinforced glass fibre), FDA listed, food grade material |
| Switchable Signal Output | FSH / FSL is integrated as standard with all electronics |
| Signal delay | Adjustable time delay of the signal output is integrated with all electronics |
- Price competitive level control device.
- Simple installation and set up, no calibration required.
- Maintenance free, corrosion resistant, suitable for a wide range of applications.
- Reliable and easy to operate measurement principle.
- Plastic or die-cast aluminium electronics housing.
- Protection class IP 66.
- Certification for use in dust-Ex Areas.
- High sensitivity from a DK range of 1.6.
