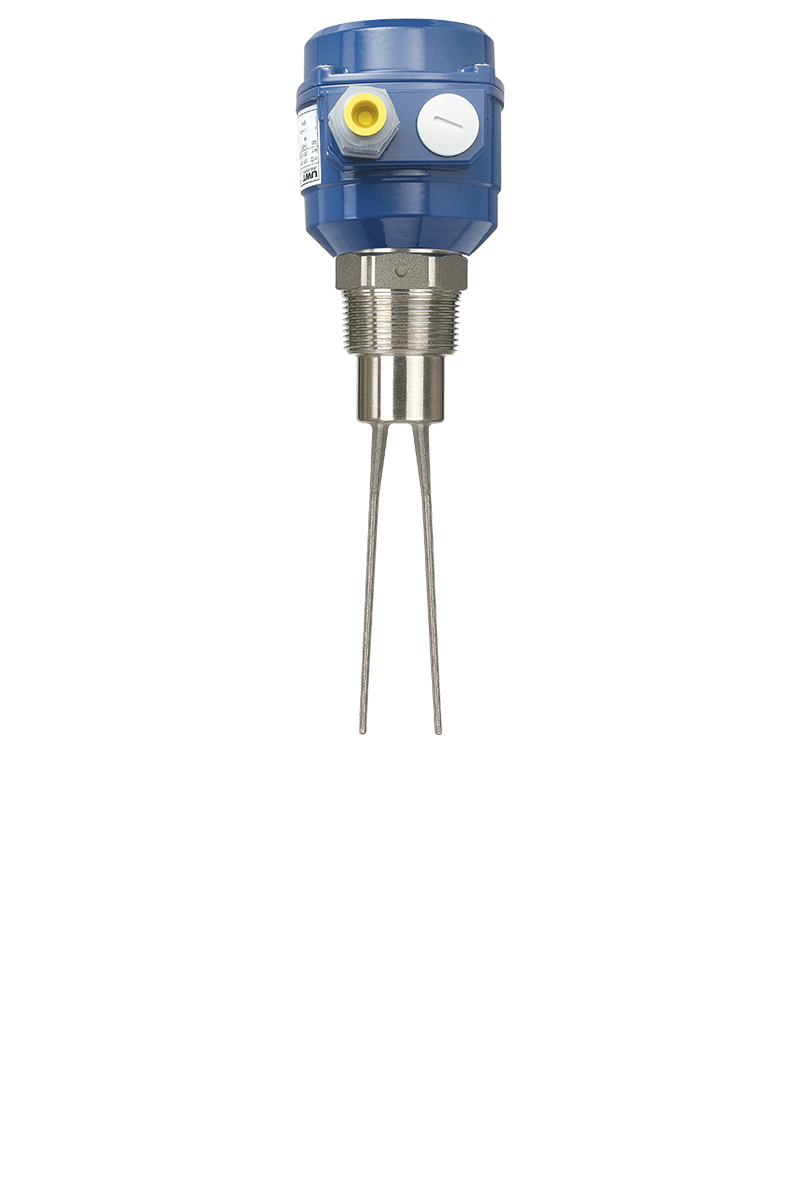

Vibrating fork sensor Vibranivo® VN 4020 - short version for point level measurement

Sold By :

rjc.co.th



HousingAluminium IP67, NEMA Type 4X
CertificatesATEX, IEC-Ex, FM, CSA, TR-CU
Process Temperature Range-40ºC to +150ºC
Pressure Range-1bar to +16bar
Sensitivityab 30g/l - adjustable in 2 increments
Process ConnectionR1½", NPT1½", NPT 1¼" , Triclamp 2", Flange DN100 PN16, other flanges available
Process Connection Material / ShaftStainless steel 1.4581 (316), 1.4541 (321)/ 1.4404 (316L)
ElectronicsRelay DPDT 19-230V AC and 19-40V DC; PNP 18-50V DC
Switchable Signal OutputFSH / FSL integrated with all electronics
LupeVibranivo 4020, Schwinggabel, Einsatzskizze, kurze Ausführung
  • Particularly suitable for use in fine-grained and powdered materials.
  • Reliable, simple and maintenance free measurement principle.
  • Particularly suitable for applications under high mechanical stress, for example as an empty indicator within very large or tall silos.
  • Compact design of the device means it is ideal for installation in tanks with very limited space; for example, within small pipes or process vessels.
  • Robust die-cast housing with IP66 protection.
  • Parts coming into contact with food made of stainless steel.
  • Approvals for application in hazardous areas (dust).
  • RoHS compliant.
