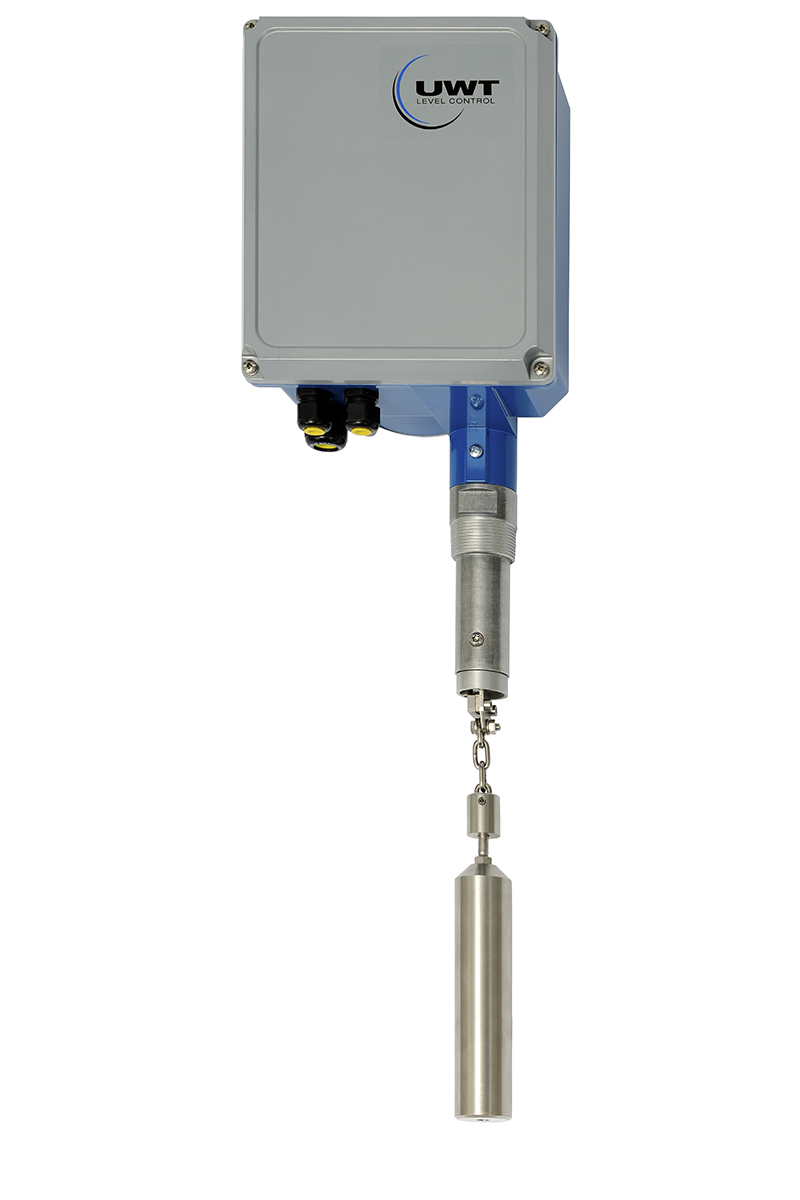

Electromechanical Sensor Nivobob® NB 4200 Tape version for level measurement
Sold By :
| Housing | Aluminium IP66 (Type 4) |
| Certificates | CE, ATEX, FM, TR-CU |
| Process Temperature Range | -40°C to +80°C |
| Pressure Range | -0.2bar to +0.2bar |
| Sensitivity | From 20g/l depending on sensor weight |
| Supply Voltage | AC: 98 .. 253V 50-60Hz; DC: 20 .. 28V |
| Measuring Range | Max. 30m |
| Tape Material | Stainless steel 1.4310 (301) 12x0,2mm |
| Signal Output | 4-20mA; Relay counting pulse; fault reporting; upper stop position. |
| Process Connection | Flange: DN100 PN16, 2", 3" 150lbs; Thread: R1½", NPT1½"; Swivel Flange |
| Sensor Weight | 1.6kg |
| Programming | via Display and programme buttons. |
- Effective sensor for continuous level measurement.
- Straightforward operation and installation - as well as on sloping silo wall.
- Reliable measurement principle.
- Software available in 5 languages (German, English, French, Russian, Italian).
- Variety of sensor weights to suit any application.
- Insensitive to dust, material changes, humidity, adhesion, temperature fluctuation, etc.
- International approvals - suitable for use within hazardous areas.
- Long service life (up to 225,000 measurements) ensures low maintenance costs.
- Various threaded and flanged connections available.
- Also available with DC power supply.
- Process temperature up to 80°C.
