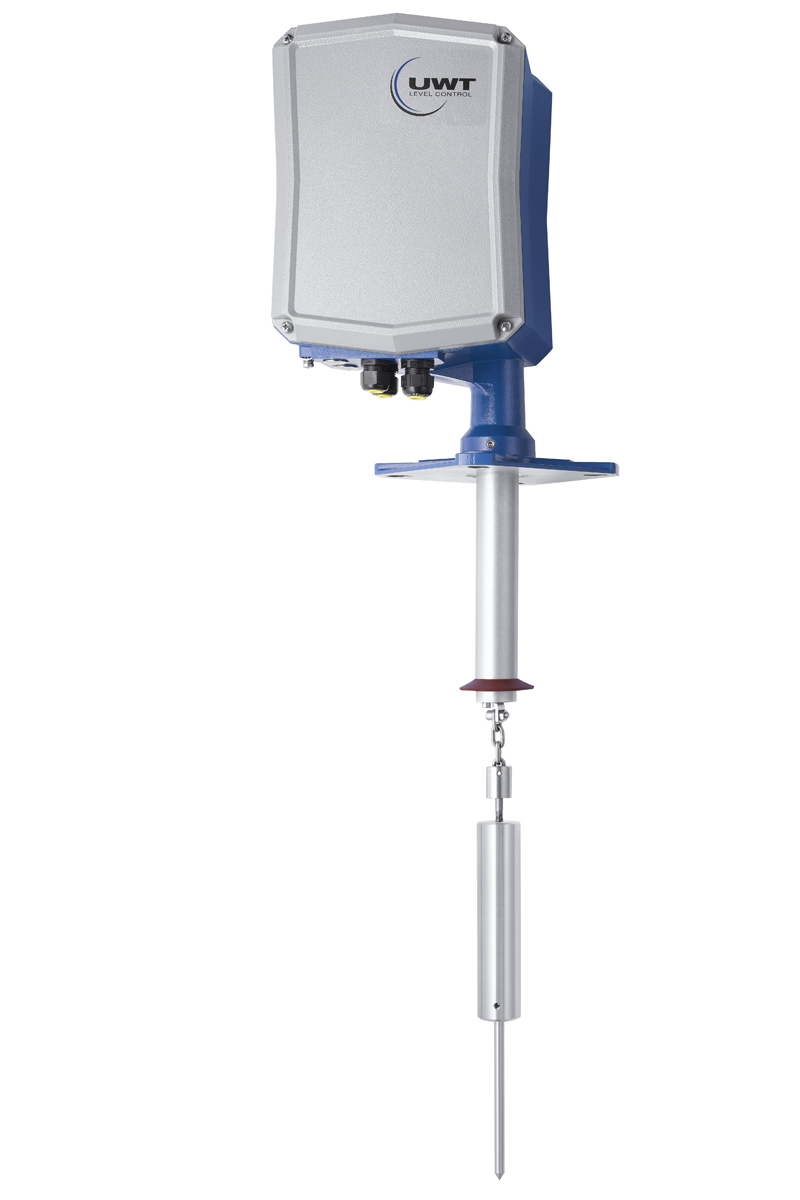

Electromechanical Sensor Nivobob® NB 3400 Tape version for level measurement
Sold By :
| Housing | Aluminium IP66 (Type 4) |
| Certificates | CE, ATEX, FM, TR-CU |
| Process Temperature Range | -40°C to +80°C |
| Pressure Range | -0.5bar to +1.7bar |
| Supply Voltage | AC: 98 .. 253V 50-60Hz; DC: 20 .. 28V |
| Measuring Range | max. 40m |
| Tape Material | Stainles steel 1.4310 (301) 12x0,2mm |
| Signal Output | 4-20mA; Relay counting pulse; fault reporting; upper stop position |
| Communication | Modbus RTU, Profibus DP |
| Process Connection | Flange: DN100 PN16, 4" 150lbs; |
| Pressure Range | -0,5bar to +1,7bar |
| Sensor Weight | 2.1kg stainless steel 1.4305 (303) |
| Programming | Via display and programming keys or externally via Nivotec/Modbus RTU |
- Simple installation and commissioning.
- High measurement accuracy.
- Long service life (up to 450,000) ensures low maintenance costs.
- Also available with DC power supply.
