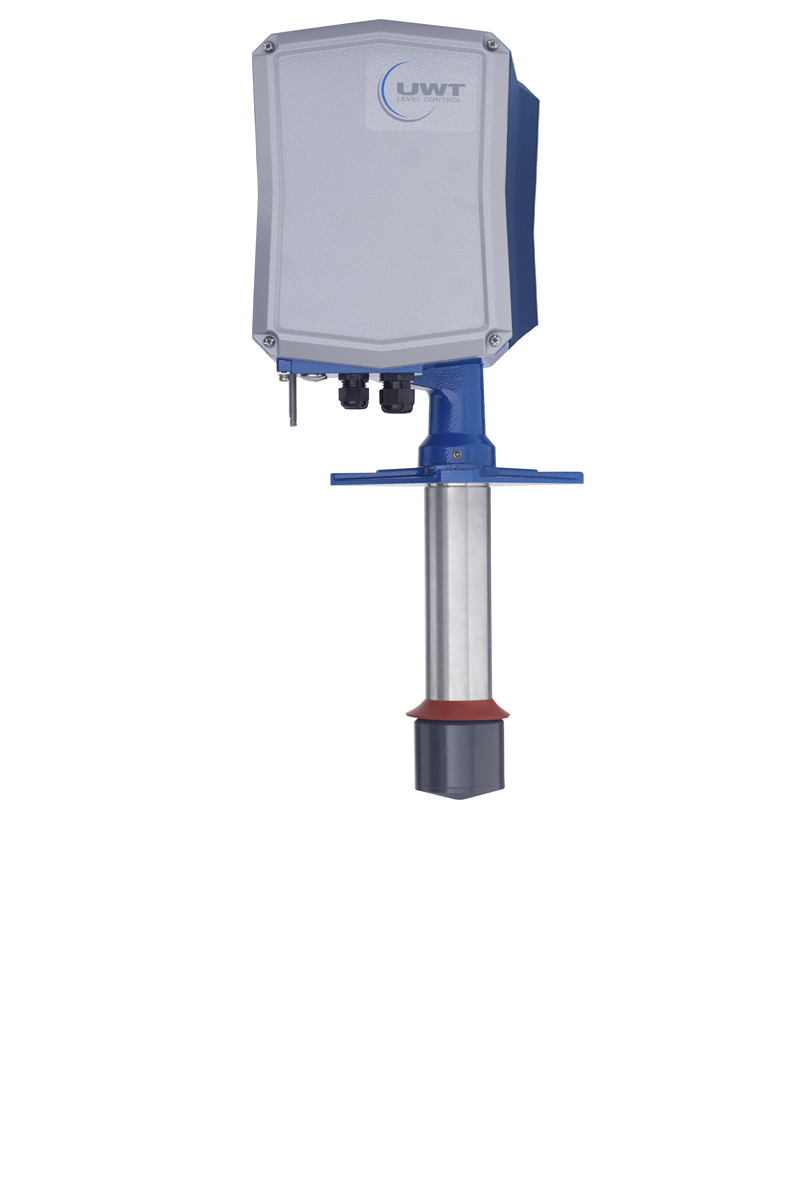

Electromechanical Sensor Nivobob® NB 3300 Rope version for level measurement
Sold By :
| Housing | Aluminium IP66 (Type 4) |
| Certificates | CE, ATEX |
| Process Temperature Range | -40°C to +80°C |
| Pressure Range | -0.5bar to +1.7bar |
| Sensitivity | Adjustable |
| Supply Voltage | AC: 98 .. 253V 50-60Hz; DC: 20 .. 28V |
| Measuring Range | max. 30m |
| Rope Material | 1.4401 (316) 1mm plastic coated PA |
| Signal Output | 4-20mA; Relay counting pulse; fault reporting; upper stop position |
| Communication | Modbus RTU, Profibus DP |
| Process Connection | Flange: DN100 PN16, 4" 150lbs; |
| Sensor Weight | 1,0kg adjustable PVC |
| Programming | via display and programming keys or externally via Nivotec/Modbus RTU |
- Adjustable PVC sensor weight.
- Simply installation and commissioning.
- High measurement accuracy.
- Long service life (up to 225,000 measurements) ensures low maintenance costs.
- Also available with DC power supply.
