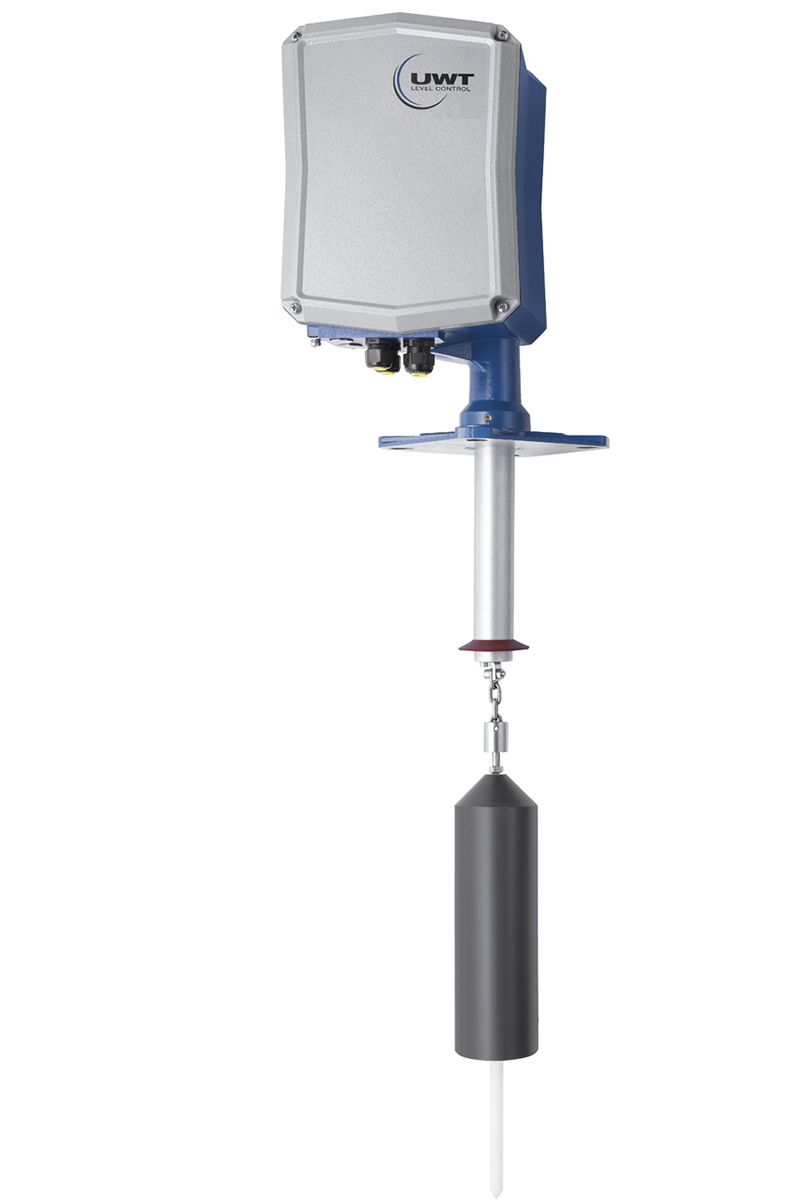

Electromechanical Sensor Nivobob® NB 3200 Tape version for level measurement
Sold By :
| Housing | Aluminium IP66 (Type 4) |
| Certificates | CE, ATEX, FM, TR-CU |
| Process Temperature Range | -40°C to +250°C |
| Pressure Range | -0.5bar to +1.7bar |
| Sensitivity | From 20 g / l depending on sensor weight. |
| Supply Voltage | AC: 98 .. 253V 50-60Hz; DC: 20 .. 28V |
| Measurring Range | max. 50m |
| Tape Material | Stainless steel 1.4310 (301) 12x0,2mm |
| Signal Output | 4-20mA; Relay counting pulse; fault reporting' upper stop position. |
| Communication | Modbus RTU, Profibus DP |
| Process Connection | Flange: DN100 PN16, 2", 3" and 4" 150lbs; Thread: R1½", NPT1½", NPT3" |
| Sensor Weight | 2.1kg |
| Programming | Via display and programming keys or externally via Nivotec / Modbus RTU |
- Variety of sensing weights to suit any application.
- Insensitive to dust, material changes, humidity, adhesion, temperature fluctuation, etc
- Simple installation and commissioning.
- High measurement accuracy event at long range.
- International approvals - suitable for use within hazardous areas.
- Long service life (up to 450,000 measurements) ensure low maintenance costs.
- Various threaded and flanged connections available.
- Also available with DC power supply.
- Process temperatures up to 250°C.
