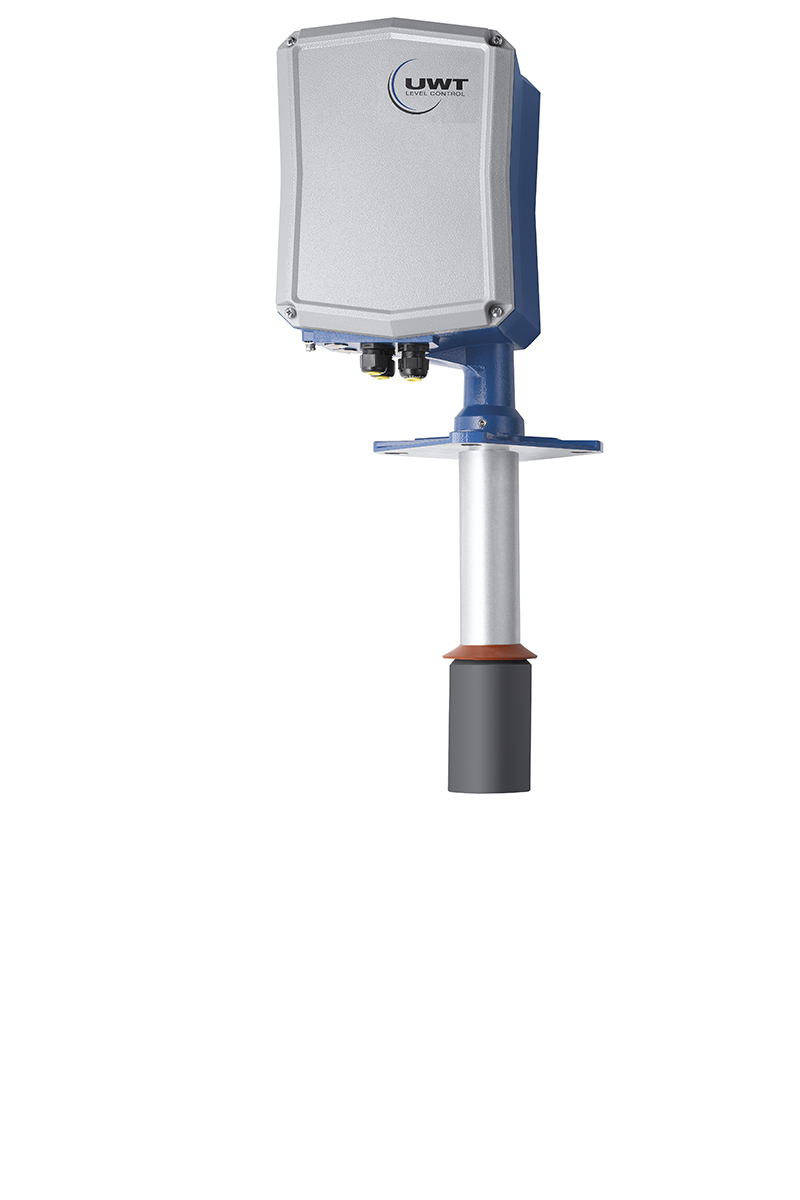

Electromechanical Sensor Nivobob® NB 3100 Rope version for level measurement
Sold By :
| Housing | Aluminium IP66 (Type 4) |
| Certificates | CE, ATEX, FM, TR-CU |
| Process Temperature Range | -40°C to +250°C |
| Pressure Range | -0.5bar to +1.7bar |
| Sensitivity | from 20 g / l depending on sensor weight |
| Supply Voltage | AC: 98 .. 253V 50-60Hz; DC: 20 .. 28V |
| Measuring Range | max. 30m |
| Rope Material | Stainless steel 1.4401 (316) 1mm |
| Signal Output | 4-20mA; Relay counting pulse; fault reporting; upper stop position |
| Communication | Modbus RTU, Profibus DP |
| Process Connection | Flange: DN100 PN16, 2", 3" and 4" 150lbs; Thread: R1½", NPT1½", NPT3" |
| Sensor weight | 1.0kg |
- Variety of sensing weights to suit any application.
- Insensitive to dust, material changes, humidity, adhesion, temperature fluctuation, etc.
- Simple installation and commissioning.
- High measurement accuracy even at long range.
- International approvals - suitable for use within hazardous areas.
- Long service life (up to 225,000 measurements) ensure low maintenance costs.
- Various threaded and flanged connections available.
- Also available with DC power supply.
- Process temperatures up to 250°C.
