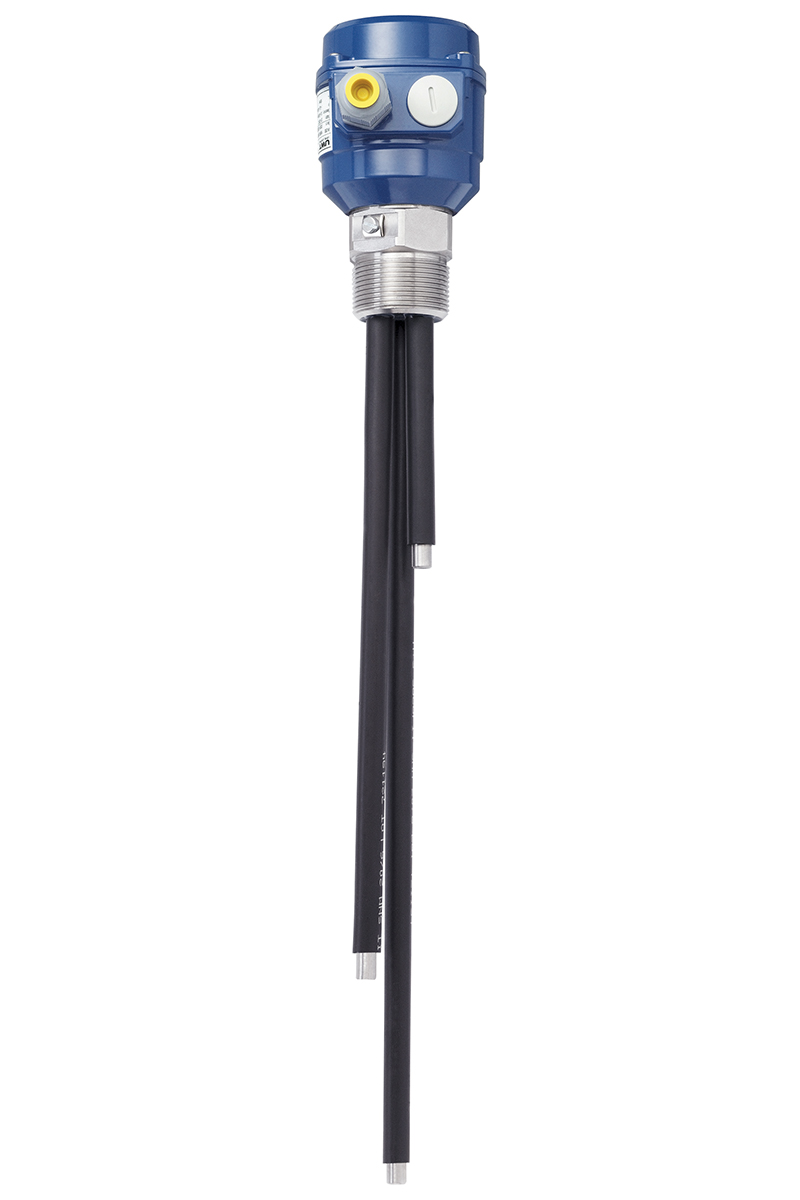

Conductive Sensor Kondunivo® KN 2800 for level measurement
Sold By :
| Housing | Die-cast aluminium IP66 |
| Certificate | CE |
| Shaft Length | 100mm basic length; extendable by internal thread in the electrode |
| Process Temperature Range | -20°C to +80°C |
| Pressure Range | -1bar to +0,8bar |
| Process Connection | G1½", NPT1½", flange DN100 PN6, flange DN100 PN16 |
| Process Connection Material, Probe | 1.4301 (SS304) / 1.4305 (303); Isolation PE/PUR |
| Electronics | AC: 24V / 42V/ 115V/ 230V (50-60Hz); DC: 20-30V |
| Signal Output | Relay SPDT |
| Switchable Signal Output | FSH/FSL integrated with all electronics |
| Signal Delay | Adjustable signal output time delay is incorporated in electronic relay DPDT |
- Level detection of electrically conductive liquids, sludge etc.
- Designed for pump control.
- Adjustable output signal delay to ensure reliable measurement in a variable liquid surface.
- Robust stainless steel extension.
- No corrosion of the probe rod due to use of alternating current within measuring circuit.
- Adjustable sensitivity.
- Electrode extendable as required.
- Aluminium die-cast electronics housing.
- Enclosure IP69 as standard.
