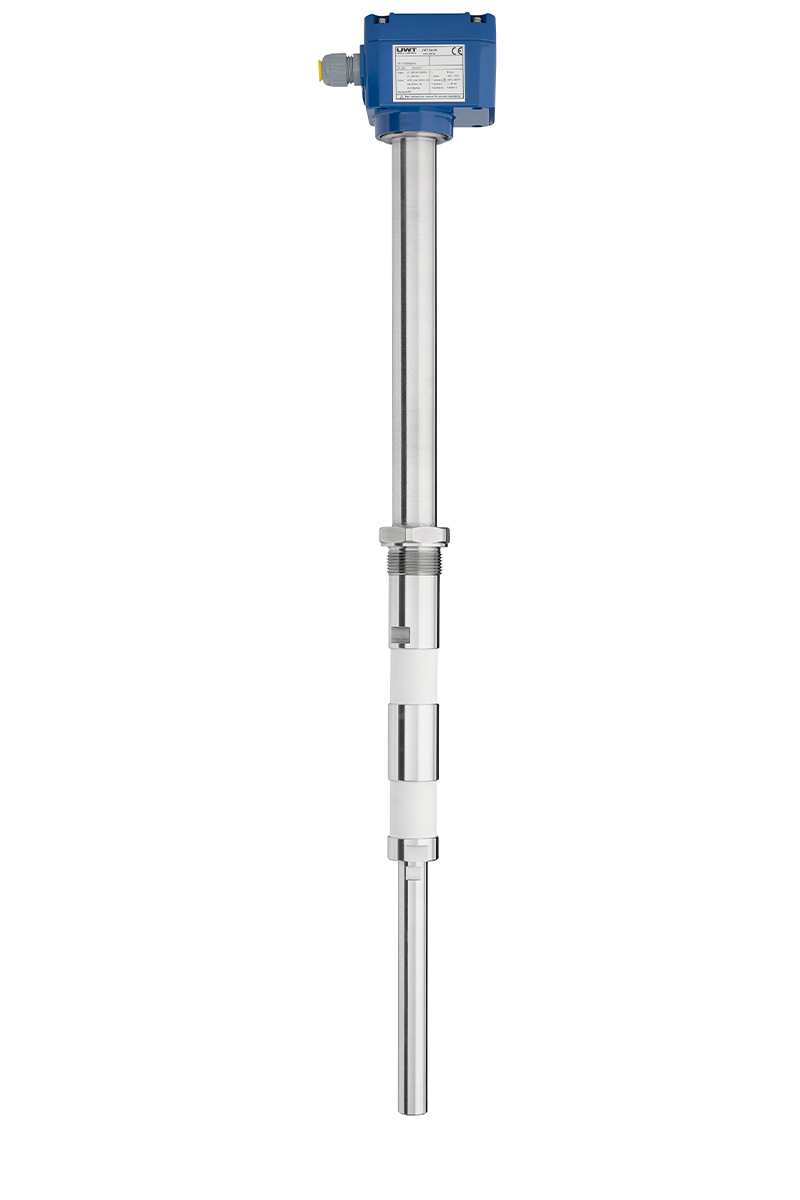

Capacitive sensor RFnivo® RF3300 for point level measurement
Sold By :
| Housing | Aluminium or plastic PA6, IP66 |
| Certificates | ATEX, IEC-Ex, FM, FMc |
| Shaft length | Rod version max. 2500mm, cable version max. 20.000mm |
| Active Probe Diameter | Rod version 22mm, cable version 8mm |
| Horizontal Rod Version | max. 525Nm |
| Vertical Cable Version | max. 10KN |
| Process Temperature Range | -40°C to +500°C |
| Pressure Range | -1bar to +10bar |
| Sensitivity | DK-value >=1.5 |
| Process Connection | G1¼", G1½", NPT1¼", NPT1½", flange DN100 PN16, other flanges available |
| Process Connection Material, Probe | 1.4301 (SS304) / 1.4305 (303) or 1.4404 (316L);Isolation ceramic FDA and 1935/2004/EC conformity 1 |
| Supply Voltage | Relay DPDT 21 .. 230V AC / 21 .. 230V DC 50-60Hz |
| Switchable Signal Output | FSH / FSL integrated with all electronics |
| Signal Delay | Integrated adjustable time delay of the signal output |
| Remote Version | Cable length between probe and electronics max. 20,000mm |
- Allrounder for nearly all types of bulk materials in all applications.
- Suitable for extreme process conditions of up to 10bar and up to 500°C.
- Suitable for applications which present high mechanical stress and tensile forces.
- Simple, automatic calibration at commissioning.
- Easy access to the parameters via display and buttons.
- Measurement of low DK values (from 1.5).
- Active Shield Technology against material build-up.
- Continuous self-diagnostic probe function.
- Electronics housing made of plastic or die-cast aluminium, protection class IP 66.
- Approvals for hazardous locations (gas and dust-Ex).
- Flameproof enclosure available for use in explosive gas atmospheres.
