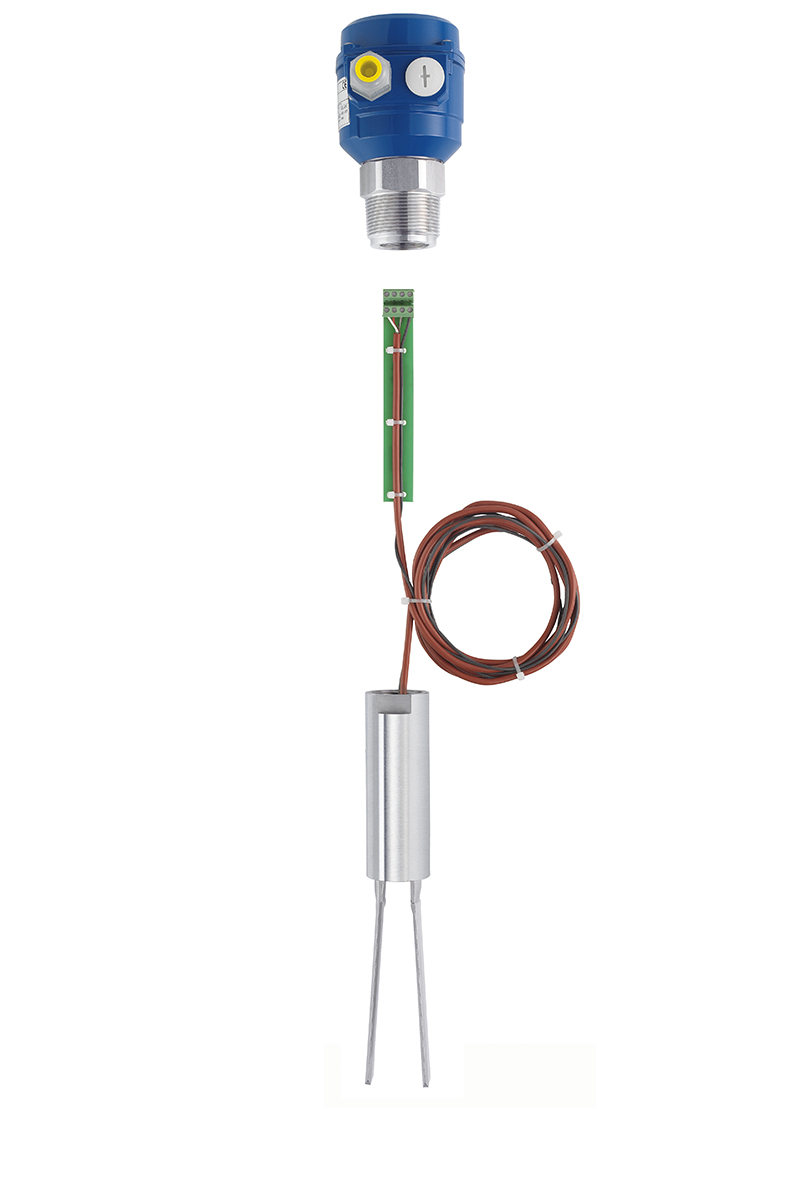

Vibrating fork sensor Vibranivo® VN 2040 with screwed tube extension for point level measurement
Sold By :
| Housing | Aluminium IP66 |
| Certificates | ATEX; IEC-Ex; TR-CU |
| Process Temperature Range | -40ºC to +150ºC |
| Pressure Range | -1bar to +16bar |
| Sensitivity | From 5g/l - adjustable in 2 increments |
| Process Connection | R1½", NPT1½", Triclamp 2", flange DN100 PN16, other flanges available |
| Process Connection Material / Shaft | Stainless steel 1.4301 (304) / 1.4541 (321) or 1.4404 (316L); polished vibrating forks, Ra ≤ 0,75μm; Teflon coating available on request |
| Electronics | Relay SPDT / DPDT 19-230V AC and 19-55V DC; PNP 18-50V DC; 2-wire contactless 19-230V AC/DC; NAMUR IEC 60947-5-6 (2-wire); 8/16mA or 4-20mA (2-wire) |
| Switchable Signal Output | FSH / FSL integrated with all electronics |
| Signal Delay | Adjustable Signal output time delay is incorporated in electronic relay DPDT |
- Particularly suitable for use in fine-grained and powdered materials.
- Reliable, simple and maintenance free measurement principle.
- Suitable to measure verz lightest bulk materials from 5g / l bulk density.
- Robust Aluminium die-cast housing with IP66 protection.
- Parts coming into contact with food made of stainless steel.
- Polished vibrating forks.
- Approvals for application in hazardous areas (gas and dust).
- Variety of electronics, such as NAMUR, 8/16mA, 2-wire, SPDT/DPDT
- RoHS compliant.
