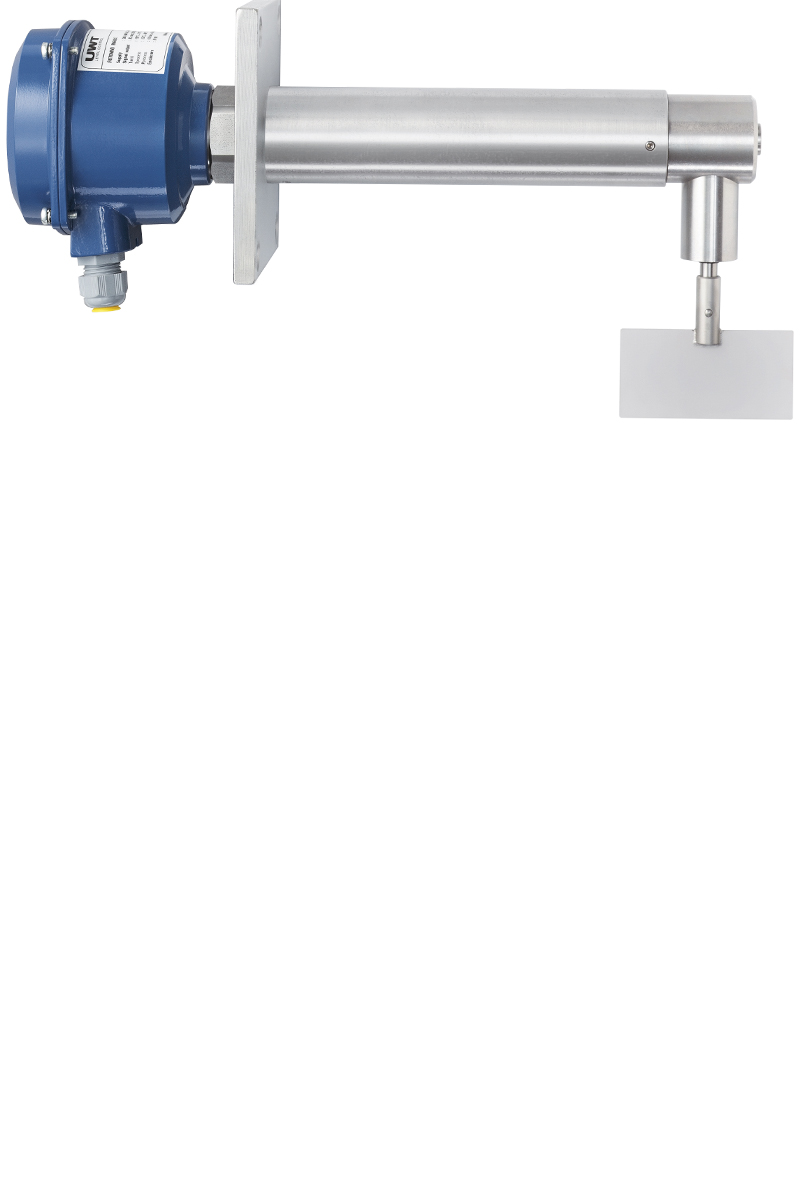

Rotary Paddle switch Rotonivo® RN 6003 with angled extension for point level measurement
Sold By :
| Housing | Aluminium IP66, NEMA Type 4/4X |
| Certificates | ATEX, IEC-Ex, FM, CSA, INMETRO, EHEDG; also GasEx certification with flameproof housing selected |
| Funtional Safety | SIL 2 |
| Process Temperature Range | -40°C to +250°C |
| Pressure Range | -0,9bar to +10bar |
| Sensitivity | min. 15g/l - adjustable in 3 settings |
| Process Connection | Flange DN100 PN16, other flanges available |
| Process Connection Material | Aluminium or stainless steel 1.4301 (304), 1.4541 (321L) |
| Measuring Vane & Shaft Material | Aluminium or stainless steel 1.4301 (SS304),1.4305 (303) |
| Bearing / Seal | Dust-proof ball bearing, stainless steel optional; radial shaft seal in NBR-rubber, FPM or PTFE |
| Supply Voltage | AC: 24V / 48V/ 115V/ 230V (50-60Hz); DC: 24V; Universal Voltage 24V DC / 22...230V AC |
| Signal Output | Microswitch, Relay SPDT contact; Relay DPDT contact |
| Switchable Signal Output | FSH / FSL with Universal Voltage electronics; with AC electronics as available option |
| Signal Delay | With Universal Electronics ist an integrated adjustable time delay of the signal output. |
| Fail Safe Alarm | Optional for Universal Voltage electronics; monitoring of motor / transmission / electronics / power failure / line break. |
- Suitable for most bulk solids.
- Reliable, easy to operate and maintenance free measurement principle.
- Unaffected by dust, electrostatic charging and caking.
- Explosion proof housing version available.
- International approvals for applications within hazardous areas (gas and dust)
- Rotatable electronics housing for easy installation.
- Mechanically stable shaft bearing design with ballbearings.
- Process seal with radial shaft seal.
- Robust aluminium die-cast housing, enclosure IP66.
- Wide range of process connections and supply voltages available.
- RoHS compliant.
