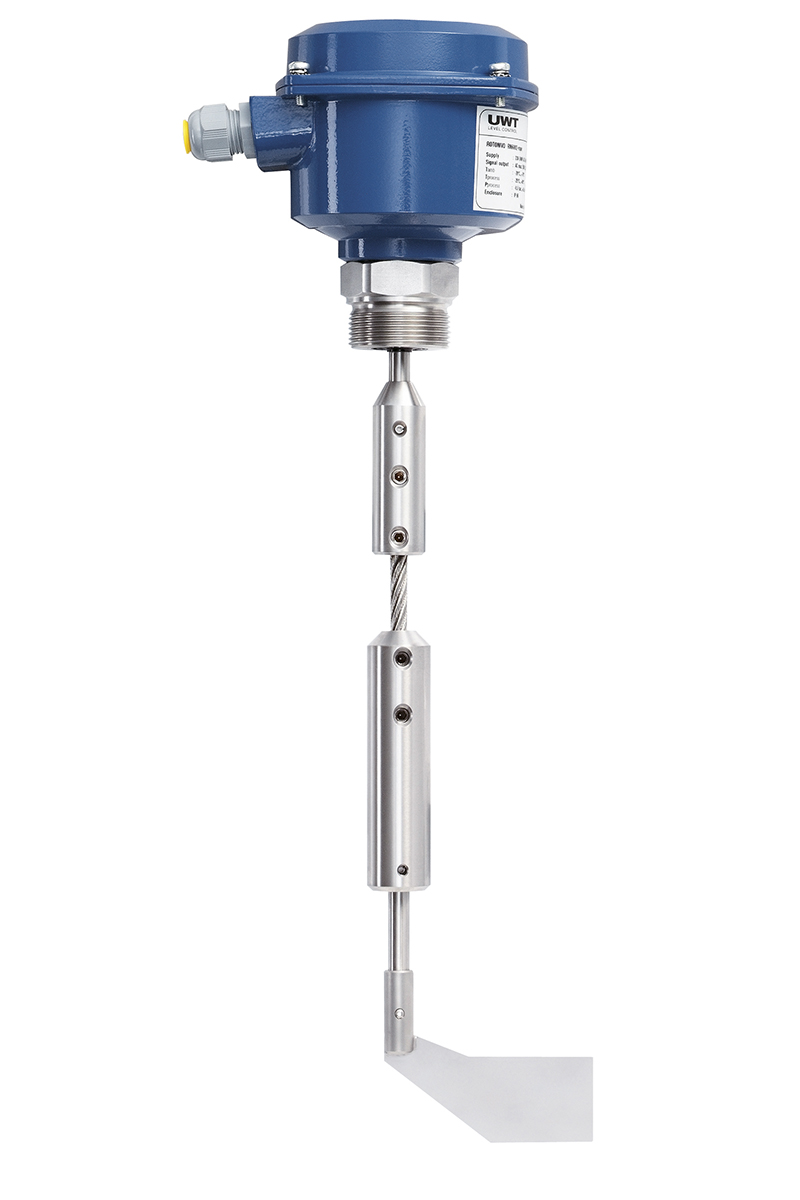

Rotary Paddle switch Rotonivo® RN 6002 with rope extension for point level measurement
Sold By :
| Housing | Aluminium IP66, NEMA Type 4/4X |
| Certificates | ATEX, IEC-Ex, FM, CSA, INMETRO, EHEDG; also GasEx certificate when flameproof housing is selected. |
| Functional Safetz | SIL 2 |
| Process Temperature Range | -40°C to +600°C |
| Pressure Range | -0,9bar bis +10bar |
| Sensitivitz | min. 15g/l - adjustable in 3 Settings |
| Process Connection | G1¼" and G1½"; NPT 1¼" and NPT1½"; flange DN100 PN16, other flanges available. |
| Process Connection Material | Aluminium or stainless steel 1.4305 (303), 1.4301 (304), 1.4541 (321L) or 1.4404 (316L) |
| Extension Material | Stainless Steel 1.4301 (SS304),1.4305 (303) or 1.4404 (316L) |
| Mechanical Load | Standard Version 4KN, reinforced version 28KN |
| Seal / Bearing | Dust-proof ball-bearing, optional in stainless steel; radial shaft seal in NBR rubber, FPM or PTFE, FPM oder PTFE |
| Supply Voltage | AC: 24V / 48V/ 115V/ 230V (50-60Hz); DC: 24V; Universal Voltage 24V DC / 22...230V AC |
| Signal Output | Microswitch, relay SPDT contact; PNP Open collector. |
| Switchable Signal Output | FSH / FSL with Universal Voltage electronics integrated; with AC electronics as an available option. |
| Signal Delay | With Universal Voltage electronics is an integrated adjustable time delay of the signal output |
| Fail Safe Alarm | Optional für Universal Electronics; monitoring of motor / transmission / electronics / power failure / line break. |
- Suitable for most bulk solids.
- Reliable, easy to operate and maintenance free measurement principle.
- Unaffected by dust, electrostatic charging and caking.
- Explosion proof housing version available.
- International approvals for applications within hazardous areas (gas and dust)
- Rotatable electronics housing for easy installation.
- Mechanically stable shaft bearing design with ballbearings.
- Process seal with radial shaft seal.
- Robust aluminium die-cast housing, enclosure IP66.
- Selectable extension length.
- Wide range of process connections and supply voltages available.
- RoHS compliant.
