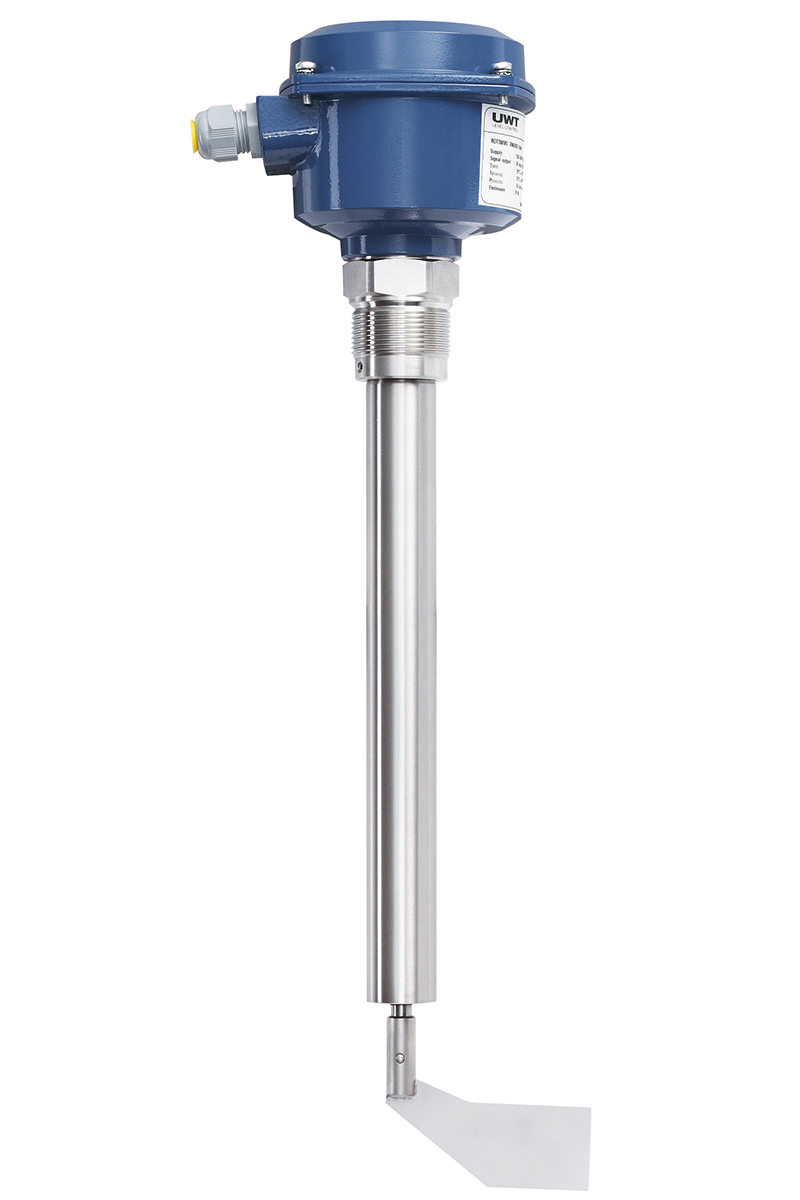

Rotary Paddle switch Rotonivo® RN 6002 with tube extension for point level measurement
Sold By :
| Housing | Aluminium IP66, NEMA Type 4/4X |
| Certificates | ATEX, IEC-Ex, FM, CSA, INMETRO, EHEDG; also GasEx approval when flameproof housing selected. |
| Functional Safety | SIL 2 |
| Process Temperature Range | -40°C to +1100°C |
| Pressure Range | -0,9bar to +10bar |
| Sensitivity | min. 15g/l - adjustable in 3 settings |
| Process Connection | G1¼" and G1½"; NPT 1¼" und NPT1½"; Triclamp 2"; flange DN100 PN16, other flanges available. |
| Process Connection Material | Aluminium or stainless steel 1.4305 (303), 1.4301 (304), 1.4541 (321L) or 1.4404 (316L) |
| Vane & Shaft Material | Aluminium or stainless steel 1.4301 (SS304),1.4305 (303) or 1.4404 (316L) |
| Bearing / Seal | Dust-proof ball-bearing, optional in stainless steel; radial shaft seal in NBR rubber, FPM or PTFE |
| Supply Voltage | AC: 24V / 48V/ 115V/ 230V (50-60Hz); DC: 24V; Universal Voltage 24V DC / 22...230V AC |
| Signal Output | Microswitch, relay SPDT contact; relay DPDT contact |
| Switchable Signal Output | FSH / FSL with Universal Voltage integrated with AC electronics as available option. |
| Signal Delay | With Universal Voltage electronic is an integrated adjustable time delay of the signal output. |
| Fail Safe Alarm | Optional for Universal Voltage electronics; monitoring of motor / transmission / electronics / power failure / line break. |
- Suitable for most bulk solids.
- Reliable, easy to operate and maintenance free measurement principle.
- Unaffected by dust, electrostatic charging and caking.
- Explosion proof housing version available.
- International approvals for applications within hazardous areas (gas and dust)
- Rotatable electronics housing for easy installation.
- Mechanically stable shaft bearing design with ballbearings.
- Process seal with radial shaft seal.
- Robust aluminium die-cast housing, enclosure IP66.
- Selectable shaft length.
- Flexible switching point adjustment with mechanical height adjustment
- Wide range of process connections and supply voltages available.
- RoHS compliant.
