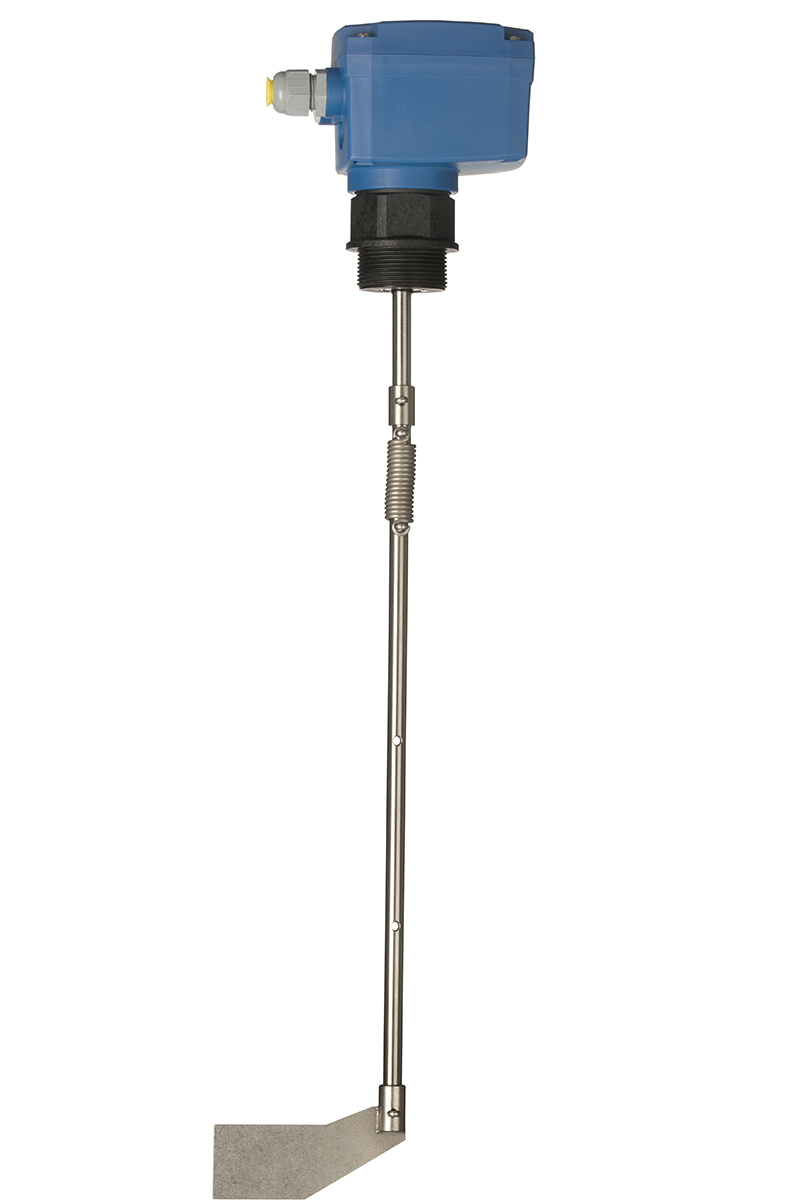

Rotary Paddle switch Rotonivo® RN 4001 with pendulum shaft for point level measurement

Sold By :

rjc.co.th



HousingPlastic PA6, IP66
CertificatesATEX, IEC-Ex, TR-CU, INMETRO
Process Temperature Range-40°C to +80°C
Pressure-0,5bar to +0,8bar
SensitivityFrom 100g/l - adjustable in 3 increments
Process ConnectionG1, G1¼, G1½ Zoll; M30x1,5; M32x1,5
Process Connection MaterialPlastic PA 6 GF or Aluminium
Shaft MaterialStainless steel 1.4305 (303)
Measuring Vane MaterialStainles steel 1.4301 (304), universal vane in plastic PP
Bearing / SealDust-proof ball-bearing with aluminium process connection, bearings at the plastic process connection; Radial shaft seal in NBR-plastic
ElectronicsAC: 24V / 48V/ 115V/ 230V (50-60Hz); DC: 24V; Universal Voltage 24V DC / 22...230V AC; PNP 24V DC
Signal OutputMicroswitch, Relay SPDT contact; PNP open collector
Switchable Signal OutputFSH / FSL with Universal Voltage electronics and PNP integrated; with AC electronics as available option
Signal DelayWith Universal Electronics is an integrated adjustable time delay of the signal output.
Fail Safe AlarmOptional for Universal Voltage electronics: monitoring of motor / transmission / electronics / power
• Suitable for most bulk solids.

• Price competitive rotary paddle switch.
• Ideal for applications with low mechanical loads.
• Reliable, easy to operate and maintenance free measurement principle.
• Small, compact for minimal space requirement.
• Compact and rotatable electronics housing for easy installation.
• Unaffected by dust, electrostatic charging and caking.
• International approvals for use in potentially explosive atmospheres (dust).
