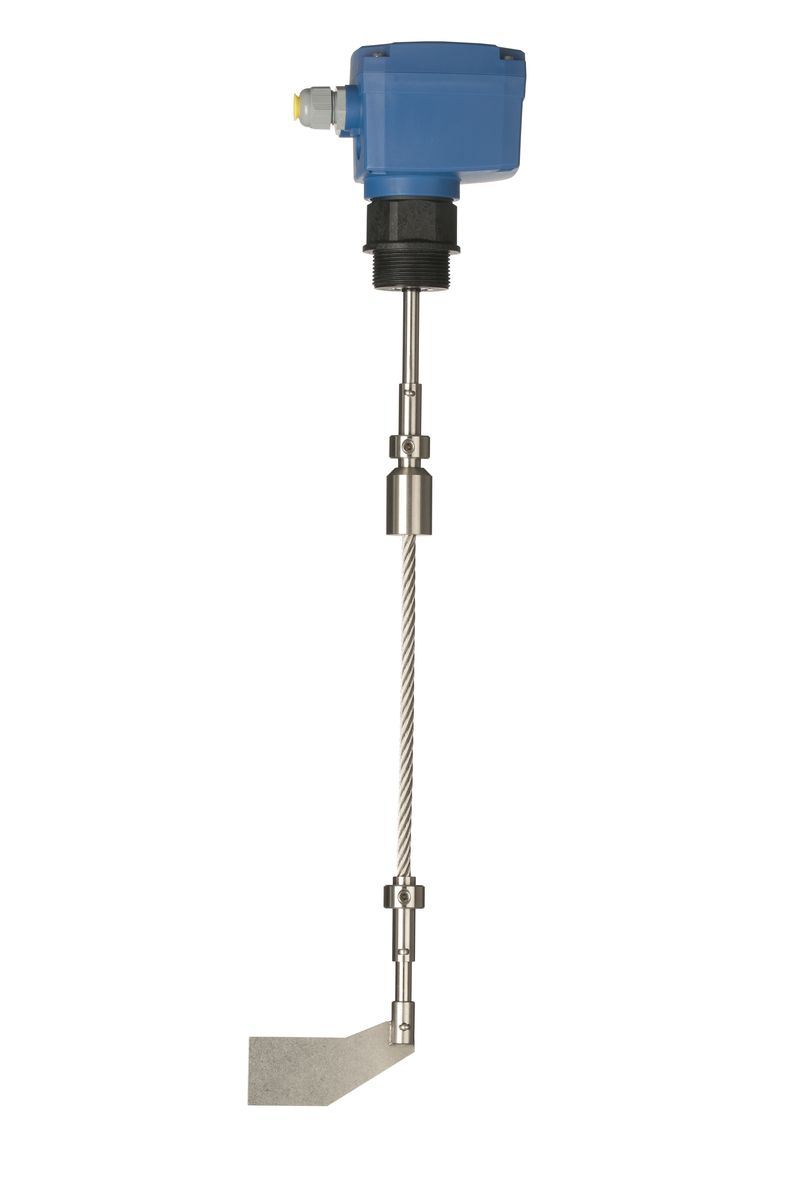

Rotary Paddle switch Rotonivo® RN 4001 with rope extension for point level measurement
Sold By :
| Housing | Plastic PA6, IP66 |
| Certificates | ATEX, IEC-Ex, TR-CU, INMETRO |
| Process Temperature Range | -40°C to +80°C |
| Pressure | -0,5bar to +0,8bar |
| Sensitivity | From 100g/l - adjustable in 3 increments |
| Process Connection | G1, G1¼, G1½ Zoll; M30x1,5; M32x1,5 |
| Process Connection Material | Plastic PA 6 GF or Aluminium |
| Shaft Material | Stainless steel 1.4305 (303) |
| Measuring Vane Material | Stainles steel 1.4301 (304), universal vane in plastic PP |
| Bearing / Seal | Dust-proof ball-bearing with aluminium process connection, bearings at the plastic process connection; Radial shaft seal in NBR-plastic |
| Electronics | AC: 24V / 48V/ 115V/ 230V (50-60Hz); DC: 24V; Universal Voltage 24V DC / 22...230V AC; PNP 24V DC |
| Signal Output | Microswitch, Relay SPDT contact; PNP open collector |
| Switchable Signal Output | FSH / FSL with Universal Voltage electronics and PNP integrated; with AC electronics as available option |
| Signal Delay | With Universal Electronics is an integrated adjustable time delay of the signal output. |
| Fail Safe Alarm | Optional for Universal Voltage electronics: monitoring of motor / transmission / electronics / power |
• Suitable for most bulk solids.
• Price competitive rotary paddle switch.
• Ideal for applications with low mechanical loads.
• Reliable, easy to operate and maintenance free measurement principle.
• Small, compact for minimal space requirement.
• Compact and rotatable electronics housing for easy installation.
• Unaffected by dust, electrostatic charging and caking.
• International approvals for use in potentially explosive atmospheres (dust).
