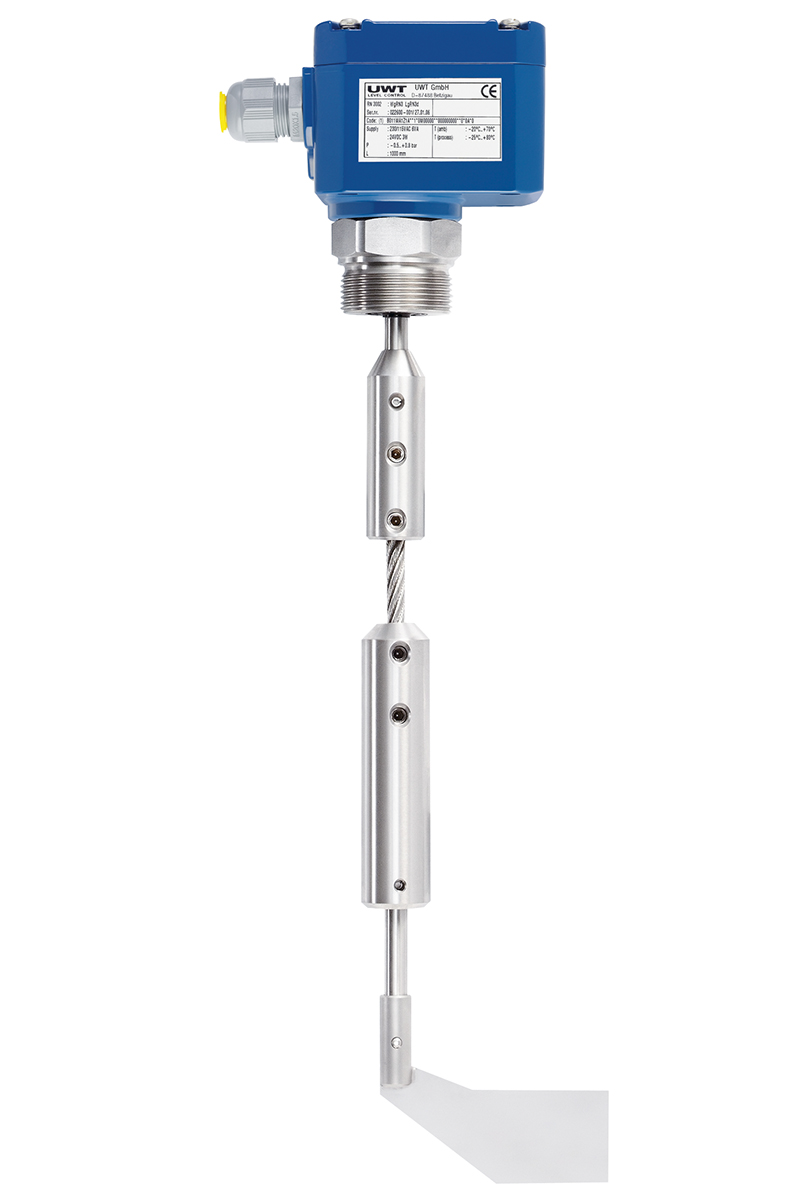

Rotary Paddle switch Rotonivo® RN 3002 with rope extension for point level measurement

Sold By :

rjc.co.th



HousingAluminium or PA6 Plastic, IP66
CertificatesATEX, IEC-Ex, TR-CU, INMETRO
Process Temperature Range-40°C to +600°C
Pressure Range-0,9bar to +10bar
Sensitivitzmin. 15g/l - adjustable in 3 settings
Process ConnectionG1¼" and G1½"; NPT 1¼" and NPT1½"; flange DN100 PN16, more flanges available.
Process Connection MaterialAluminium or stainless steel 1.4305 (303), 1.4301 (304), 1.4541 (321L) or 1.4404 (316L)
Shaft MaterialStainless steel 1.4301 (SS304),1.4305 (303) or 1.4404 (316L)
Mechanical LoadStandard version: 4KN, reinforced version: 28KN
Bearing/SealDust-proof ball-bearing, optional in stainless steel, radial shaft seal in NBR rubber, FPM or PTFE
ElectronicsAC: 24V / 48V/ 115V/ 230V (50-60Hz); DC: 24V; Universal voltage 24V DC / 22...230V AC; PNP 24V DC
Signal OutputMicroswitch, relay SPDT contact; PNP Open collector
Switchable Signal OutputFSH / FSL with Universal Voltage and PNP integrated; with AC Electronics as available options
Signal DelayWith Universal Voltage Electronic and PNP is an integrated adjustable time delay of the signal output.
Fail Safe AlarmOptional for universal voltage electronics; Monitoring of motor / transmission / electronics / power failure / line break
LupeInstallation examples rotary paddle switch Rotonivo RN3002 rope
  • Suitable for most bulk solids.
  • Reliable, easy to operate and maintenance free measurement principle.
  • Unaffected by dust, electrostatic charging and caking.
  • Compact, rotatable electronics housing for easy installation.
  • Mechanically stable shaft bearing design with ballbearings.
  • Process seal with radial shaft seal.
  • Robust aluminium die-cast housing.
  • International approvals for use in potentially explosive atmospheres (dust)
  • Varying shaft lengths available.
  • Enclosure IP66 as standard.
  • Wide range of process connections and supply voltages available.
  • RoHS compliant.
