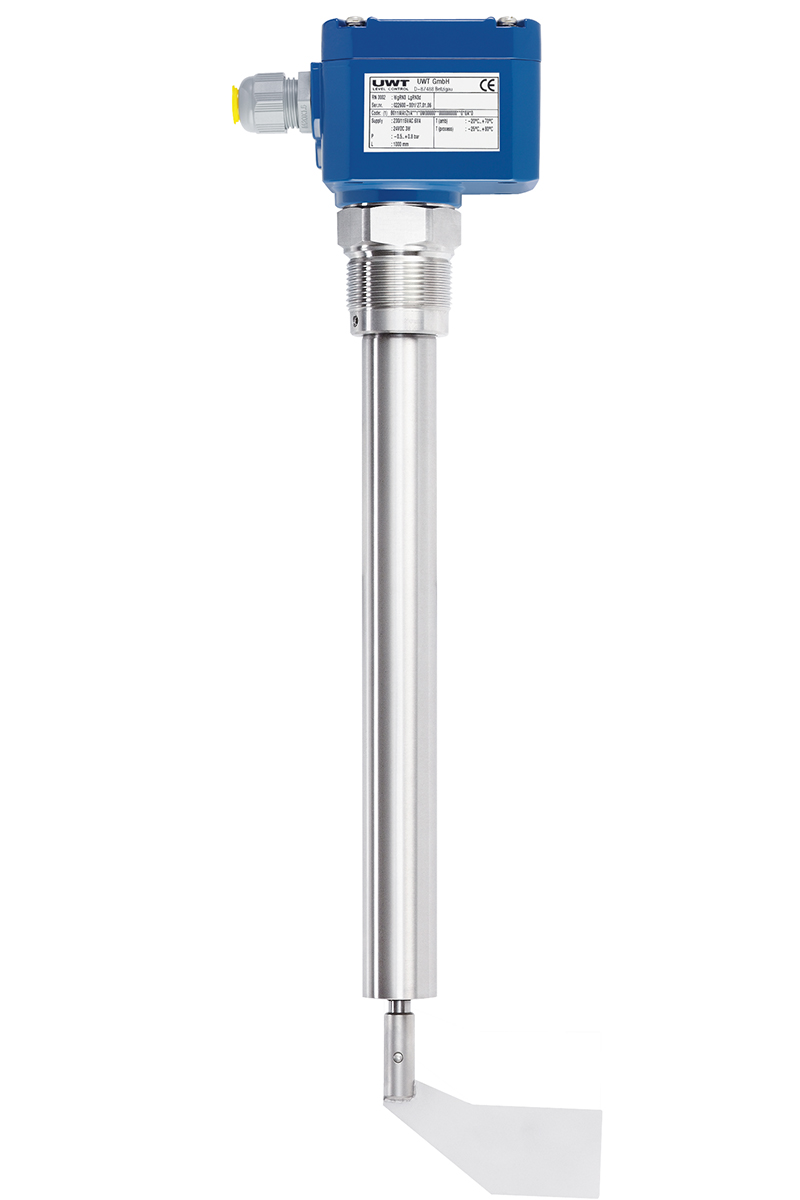

Rotary Paddle switch Rotonivo® RN 3002 with tube extension for point level measurement

Sold By :

rjc.co.th



HousingAluminium or PA6 plastic, IP66
CertificatesATEX, IEC-Ex, TR-CU, INMETRO, EHEDG
Process Temperature Range-40°C to +1100°C
Pressure Range-0.9bar to +10bar
Sensitivitymin. 15g/l - adjustable in 3 settings
Process ConnectionG1¼" and G1½"; NPT 1¼" and NPT1½"; triclamp 2"; flange DN100 PN16, more flanges available
Process Connection MaterialAluminium or stainless steel 1.4305 (303), 1.4301 (304), 1.4541 (321L) oder 1.4404 (316L)
Measuring Vane & Shaft MaterialAluminium or stainless steel 1.4301 (SS304),1.4305 (303) oder 1.4404 (316L)
Bearing/SealDust-proof ball-bearing, optional in stainless steel, radial shaft seal in NBR rubber, FPM or PTFE
Supply VoltageAC: 24V / 48V/ 115V/ 230V (50-60Hz); DC: 24V; Universal voltage electronic 24V DC / 22...230V AC; PNP 24V DC
Signal OutputMicroswitch, relay SPDT contact; PNP Open collector
Switchable Signal OutputFSH / FSL with Universal Voltage and PNP integrated; with AC electronics than available option
Signal DelayWith Universal Voltage Electronic and PNP is an integrated adjustable time delay of the signal output
Fail Safe AlarmOptional for universal voltage electronics; Monitoring of motor / transmission / electronics / power failure / line break
LupeInstallation examples Rotary paddle Switch Rotonivo RN3002
  • Suitable for most bulk solids.
  • Reliable, easy to operate and maintenance free measurement principle.
  • Unaffected by dust, electrostatic charging and caking.
  • International approvals for use in potentially explosive atmospheres (dust).
  • Compact, rotatable electronics housing for easy installation.
  • Mechanically stable shaft bearing design with ballbearings.
  • Process seal with radial shaft seal.
  • Robust aluminium die-cast housing.
  • Varying shaft lengths available.
  • Enclosure IP66 as standard.
  • Flexible height adjustment.
  • Wide range of process connections and supply voltages available.
  • RoHS compliant.
