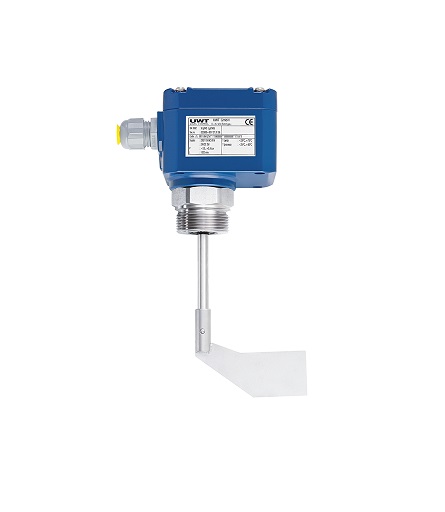

Rotary Paddle switch Rotonivo® RN 3001 for point level measurement

Sold By :


  • HousingAluminium or plastic PA6, IP66
    Process Temperature Range-40 ° C to + 1100 ° C
    Pressure Range-0.9bar to + 10bar
    Sensitivitymin. 15 g / l - adjustable in 3 settings
    Process ConnectionG1 ", G1¼" and G1½ "; NPT 1" NPT 1¼ "and NPT1½"; M30x1.5 and M32x1.5; Triclamp 2 "; DN100 PN16 flange, more flanges available
    Process Connection MaterialAluminium or stainless steel 1.4305 (303), 1.4301 (304), 1.4541 (321L) or 1.4404 (316L)
    Vane, Shaft MaterialStainless steel 1.4301 (SS304), 1.4305 (303) or 1.4404 (316L)
    Bearing/Sealball bearing dustproof, optional stainless steel; Radial shaft seal in NBR rubber, FPM or PTFE
    ElectronicsAC: 24V / 48V / 115V / 230V (50-60Hz); DC: 24V; Universal voltage 24V DC / 22 ... 230V AC; PNP 24V DC
    Signal outputMicro switches, relays SPDT contact; PNP open collector
    Safety CircuitFSH / FSL integrated with electronics and universal voltage PNP; available at AC electronics as an option
    Signal DelayIntegrated adjustable time delay of the signal output within electronics and universal voltage PNP
    MonitoringOptional for universal voltage PNP; Monitoring of motor /transmission /electronics /power failure /line break

LupeInstallation examples rotary paddle switch Rotonivo RN3001
  • Suitable for most bulk solids.
  • Reliable, easy to operate and maintenance free measurement principle.
  • Unaffected by dust, electrostatic charging and caking.
  • International approvals for use in potentially explosive atmospheres (dust).
  • Compact, rotatable electronics housing for easy installation.
  • Mechanically stable shaft bearing design with ballbearings.
  • Process seal with radial shaft seal. Robust aluminium die-cast housing.
  • Enclosure IP66 as standard.
  • Wide range of process connections and supply voltages available.
  • RoHS compliant
