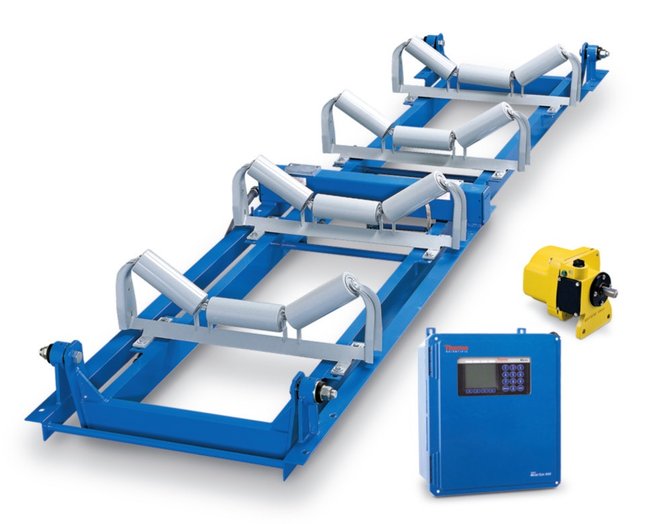

Ramsey™ Series 17 Belt Scale System
Sold By :
The Ramsey Series 17 Belt Scale System Features:
- Long weighbridge design offers high accuracy of ±0.25%
- Long weighbridge permits more scale-borne time, minimizing alignment errors
- Belt scale system available in a two or four-idler version
| Product Size | - |
| Description | Series 17 Belt Scale System |
| Enclosure Protection | Load Cell: Environmentally-protected “S” type cell |
| Excitation | Load Cells: 10 ±5%VDC |
| Housing | Ramsey 60-12C Digital Speed Sensor: Weather-tight, epoxy finish, cast aluminum |
| Hysteresis | Load Cells: <0.02% FS |
| Input/Output | Load Cell: 3 mV/V ±0.1% |
| Load Cells | Series 17 Belt Scale System: Two super-precision strain gauge load cells mounted in tension for stability and reduction of misalignment errors |
| Mounting Hardware | Ramsey 60-12C Digital Speed Sensor: Hardware supplied with coupling, restraint arm and restraint spring |
| Mounting | Load Cells: Tension |
| Overload | Load Cells: Safe to 150% of load cell capacity; Ultimate to 300% FS; Sideload 50% FS |
| Quantity | Load Cells: Two in parallel |
| Type | Ramsey 60-12C Digital Speed Sensor: Digital, brushless |
| Certifications/Compliance | ISO-9001 certified |
