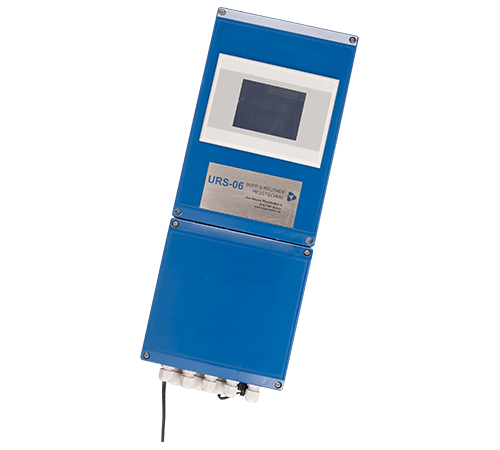

The URS-06 can be used for simple dosing tasks. Pumps and valves can be controlled. Operation is via a 3.5 inch touch screen with integrated PLC. This allows the operator to make all the necessary entries for dosing.
TECHNICAL DATA
| pulse inputs / frequency measurements |
Standard extendable to |
2x OC, 5V pulses and 24V pulses 6x OC, 5V pulses and 24V pulses |
| temperature inputs | Standard | 2x PT100/500/1000 |
| current inputs |
Standard extendable to |
2x 0/4-20mA aktive or passive 4x 0/4-20mA aktive or passive |
| temperature measurement | Standard | PT100/500/1000, current |
| pressure measurement | Standard | current, absolute or relative |
| density measurement | Standard | Frequency, current |
| digital outputs |
Standard extendable to |
3x Relais 3x Relais, 4x Optocoupler |
| current outputs |
Standard extendable to |
2x 0/4-20mA 6x 0/4-20mA |
| interfaces | Standard | Ethernet |
| Protocol | Standard | Modbus TCP/IP |
