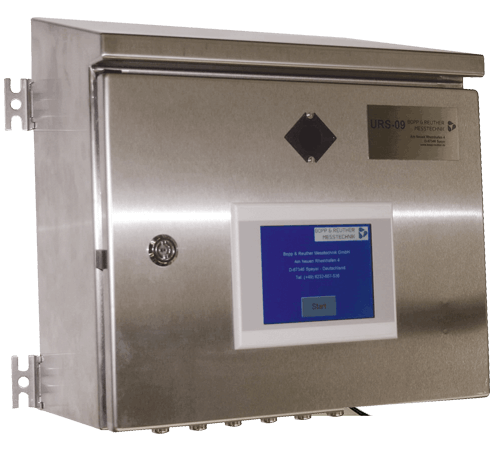

The URS-09 can be used for more extensive dosing tasks and loading systems. Pumps, valves, etc. can be controlled. Operation is via a 5.7-inch touch screen with integrated PLC. This allows the operator to make all the necessary entries for dosing.
TECHNICAL DATA
|
pulse inputs / frequency measurements (UR06) |
Standard extendable to |
2x OC, 5V pulses and 24V pulses 6x OC, 5V pulses and 24V pulses |
|
digital inputs (SPS) |
Standard |
8x 24VDC |
|
Temperature inputs (UR06) |
Standard |
2x PT100/500/1000 |
|
Current inputs (UR06) |
Standard extendable to |
2x 0/4-20mA active oder passive 4x 0/4-20mA active oder passive |
|
Temperature measurement (UR06) |
Standard |
PT100/500/1000, current |
|
Pressure measurement (UR06) |
Standard |
current, absolute or relative |
|
Density measurement (UR06) |
Standard |
Frequency, current |
|
Digital outputs (UR06) |
Standard |
3x Optocoupler |
|
Digital outputs (SPS) |
Standard |
8x 24VDC |
|
Current outputs (UR06) |
Standard extendable to |
2x 0/4-20mA 6x 0/4-20mA |
|
Interface (SPS) |
Standard |
Ethernet |
|
Protocols (SPS) |
Standard |
Modbus TCP/IP |
