COMPACT ORIFICE

Sold By :

rjc.co.th

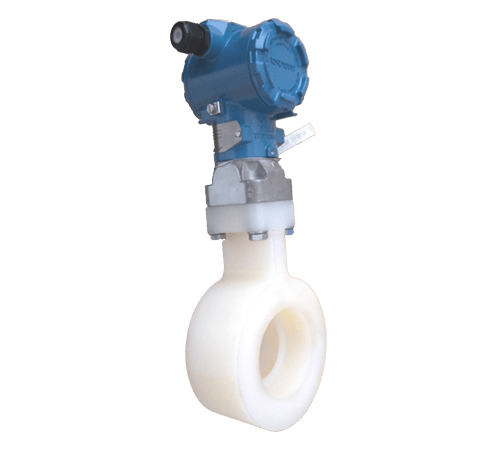

The compact orifice Oriflow is used for flow measurements of conductive and non-conductive fluids, gases and vapours in all industrial branches.


Our strategic business unit (SBU) METRA Energie-Messtechnik has taken over this area. Our team will be happy to answer any questions you may have.


Application:

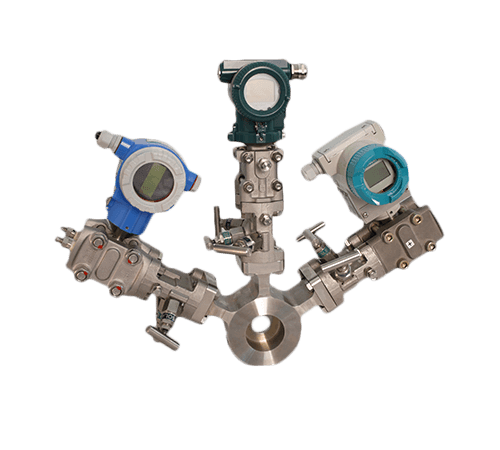

Applications include flow measurements (volume / Mass) for balancing (compressed air systems, heat carries, vapours, chemical products, for examples), process control and high throughput applications, redundant solutions for safety applications
TECHNICAL DATA
Nominal sizeDN15 to DN300 (1/2“ to 12“), bigger sizes on request
Process connectionSandwich, Flanges according to DIN or ANSI
MaterialStainless steel, Hastelloy, Tantalum, Titan, PVDF, Monel
Flow Range0.2 to 150,000 m³/h
(52.83 to 39,625808 gal/h)
Accuracyup to ±0,6%
Viscosity

-40°C up to +400°C
(-40°F up to +752°F)

Process temperatureup to PN100 (up to 320 bar / 4,641 psi on request)
Process pressurecurrent output / Foundation Fieldbus / Profibus A
Ex-protectionFlame proof or intrinsically safe
