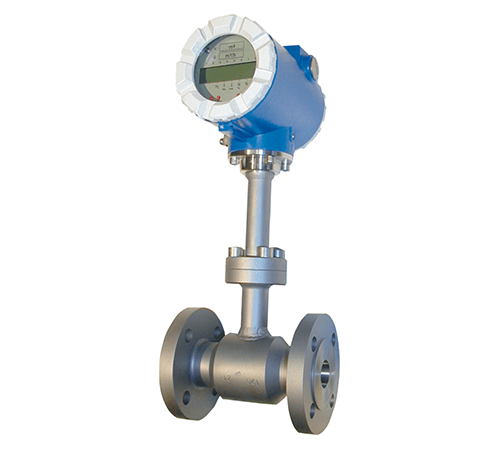

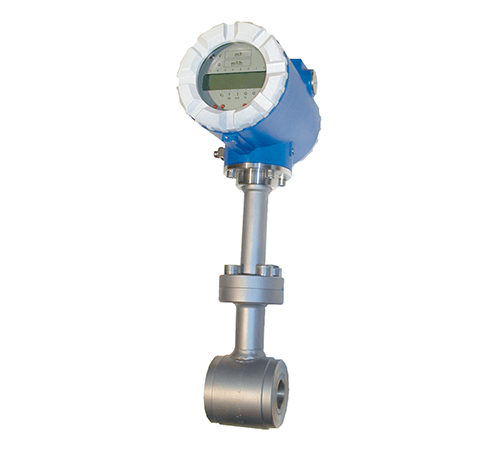

The VTX vortex meter is used for flow and volumetric measurements of conductive and non-conductive fluids, gases and vapours in all industrial branches.
Application:
Applications include volumetric measurements for balancing (compressed air systems, heat carriers, vapours, chemical products, for example), process control and high throughput applications, thermal oil.
TECHNICAL DATA
| Nominal size |
DN15 to DN300 (1/2“ to 12“) (larger connections on request) |
| Process connection | Sandwich, Flanges according to DIN or ANSI |
| Material | Stainless steel |
| Flow Range |
0.4 to 20,000 m³/h |
| Accuracy | up to ±0,6% |
| Repeatability | -40°C up to +260°C / 450°C (-40°F up to +500°F / 842°F) |
| Viscosity | up to PN100 |
| Process temperature | current output with HART® or current pulses and scalable pulse output according to NAMUR |
| Process pressure | eight digit display up front with operating keys, DTM and AMS drivers are available |
| Ex-protection | Flame proof or intrinsically safe |
