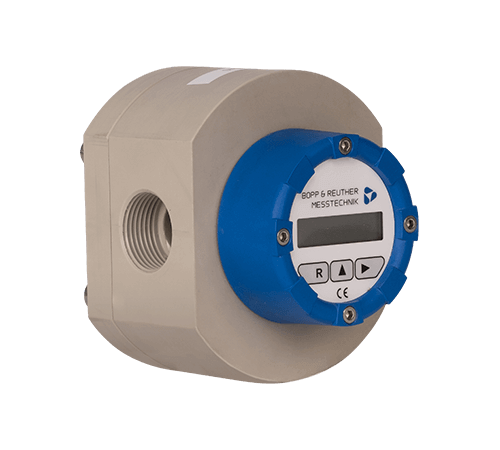

OVAL WHEEL METER SERIES FLOWAL® PLUS
Sold By :
Versatile flowmeter for measuring the volume of liquids in mechanical engineering, factory automation and process instrumentation, such as suited for industrial fluids, chemical fluids, mineral oils and fuels. The modular design combines reliable mechanical sensors with modern electronics. The plastic version is suitable for measuring the volume of corrosive liquids, acids, alkalis, solvents, dyes…
CHARACTERISTICS
- oval wheel meters for low to mid viscosity liquids
- battery powered model available
- low pressure loss
SPECIAL FEATURES
- single case meter design
- no straight inlet and outlet pipe sections required
- measuring principle independent of the viscosity
- easy start-up
- maintenance-free
- plastic version: no wetted metal parts and low weight
- built-in temperature sensor
- battery-supplied compact devices
- detection of flow direction
Nominal size
G1/4“, G1/2“, G3/4“, G1“, G2“
Flanges DN15, DN25, DN50
Flanges ½“, 1“, 2“
Process connection
Inside threads according to ISO 288
Flanges according to DIN or ANSI
Material
pressure relevant: stainless steel, aluminum, PVDF, PP
other wetted parts: PEEK; stainless steel
Flow Range 0,03 l/min to 660 l/min Accuracy ±0,25% to ±0,5% Repeatability ±0,02% Viscosity
0,3 to 3.000 mPa·s
Process temperature
-40°C up to 130°C
(-40°F up to 266°F)
Process pressure up to 68 bar (986 psi) Ex-protection intrinsically safe (ATEX or IEC-Ex)
| Nominal size |
G1/4“, G1/2“, G3/4“, G1“, G2“ |
| Process connection |
Inside threads according to ISO 288 |
| Material |
pressure relevant: stainless steel, aluminum, PVDF, PP other wetted parts: PEEK; stainless steel |
| Flow Range | 0,03 l/min to 660 l/min |
| Accuracy | ±0,25% to ±0,5% |
| Repeatability | ±0,02% |
| Viscosity |
0,3 to 3.000 mPa·s |
| Process temperature |
-40°C up to 130°C |
| Process pressure | up to 68 bar (986 psi) |
| Ex-protection | intrinsically safe (ATEX or IEC-Ex) |
